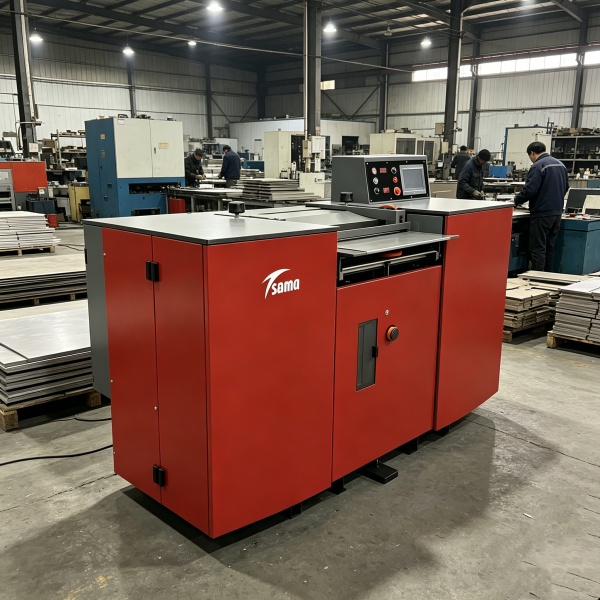

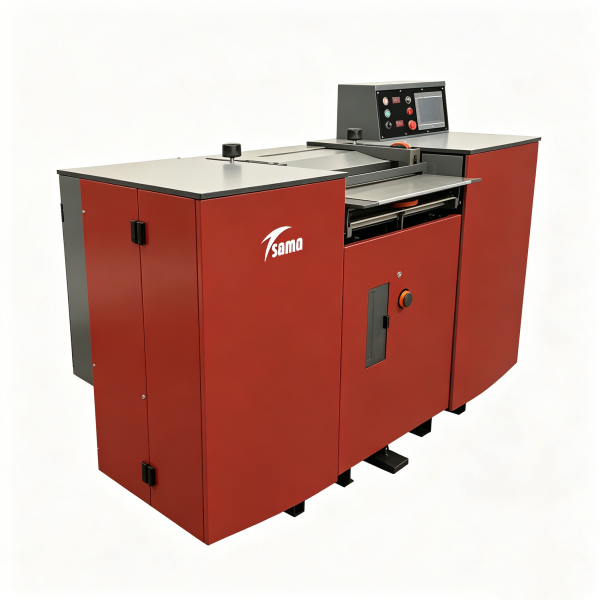

SAMA S420RC+ New Touch Screen High-Precision Splitting Machine
Booth| Model Number | S420RC+ |
| Brand | SAMA |
| Dimension(L*W*H) | 1700x1100x1290mm / 1800x1100x1290mm |
| Net Weight | 740kg / 800kg |
| Voltage | 3.6KW |
SAMA High Precision Splitting Machine
Upgraded Slicing Machine
Model: S420RC+ / S520RC+
Latest Features
Band knife tracking and clamping require no readjustment during blade changes.
The flywheel moves on precise linear bearing guides.
Variable-frequency stepless speed regulation allows free adjustment of the feed rate.
Single control for fine adjustment of knife grinding.
Dedicated dust and waste extraction system for the grinding process.
Four-step quick adjustment of working pressure.
Detailed operation and maintenance manual.
Low-noise operation.
Quick replacement of top feed roller and top presser foot without removing the universal joint.
All components are designed for easy disassembly and installation, facilitating simple and quick maintenance.
Mechanical components are permanently lubricated.
Pneumatic grinding wheel unit for flatter, safer, and easier operation.
Band knife width increased to 60mm, extending blade life by over 25% and enhancing overall machine stability.
Separate digital displays for splitting thickness and feed speed provide intuitive and convenient operation.
Pictorial fault display for safety switch disengagement, motor overload, full waste bin, and band knife end-of-life allows for rapid diagnosis and timely troubleshooting.
Integrated counting function for real-time production monitoring.
Technical Specifications
| Specification | S420RC+ | S520RC+ |
|---|---|---|
| Feed Speed | Stepless speed change | Stepless speed change |
| Fault Display | Touchscreen | Touchscreen |
| Indications & Info | Touchscreen | Touchscreen |
| Working Pressure | Machine | Machine |
| Installed Power | 3.6KW | 3.6KW |
| Net Weight | 740Kg | 800Kg |
| Gross Weight | 790Kg | 860Kg |
| Machine Size (LWH) | 170011001290(mm) | 180011001290(mm) |
| Package Size (LWH) | 175011501440(mm) | 185011501440(mm) |
| Working Width | 420mm | 520mm |
| Knife Belt Size | 3750x60x0.8(mm) | 3950x60x0.8(mm) |
| Max. Splitting Thickness | 8mm | 8mm |
| Min. Splitting Thickness (Upper Roller) | 0.5mm | 0.5mm |
| Min. Splitting Thickness (Upper Presser Foot) | 0.1mm | 0.1mm |

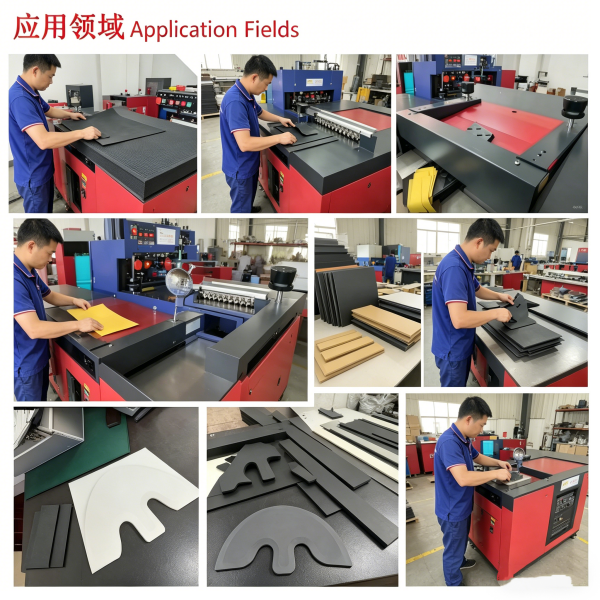

Application Fields
The machine is mainly used in shoes, luggage, furniture, leather products, car interior decoration, gift packaging and other industries.

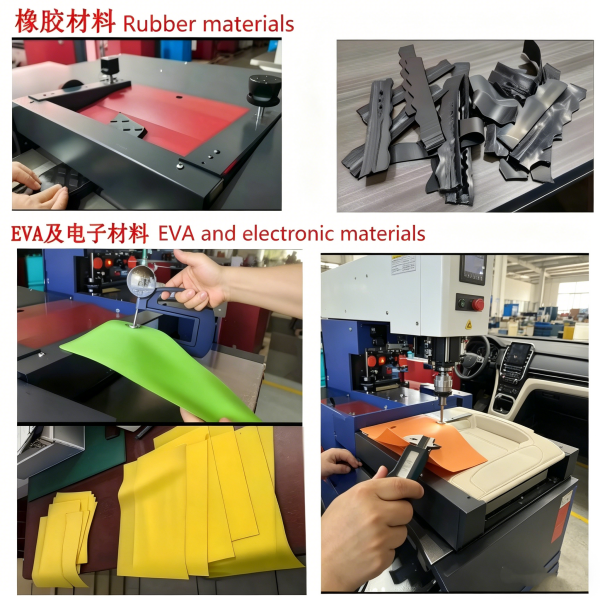

Splitting machines adapt to high-precision thinning and stratification of dry or wet leather, soft or hard leather, PVC, PET, EVA, PMMA, and other materials. SAMA splitting machines can satisfy various materials with different processing methods, and can achieve high-quality requirements.
