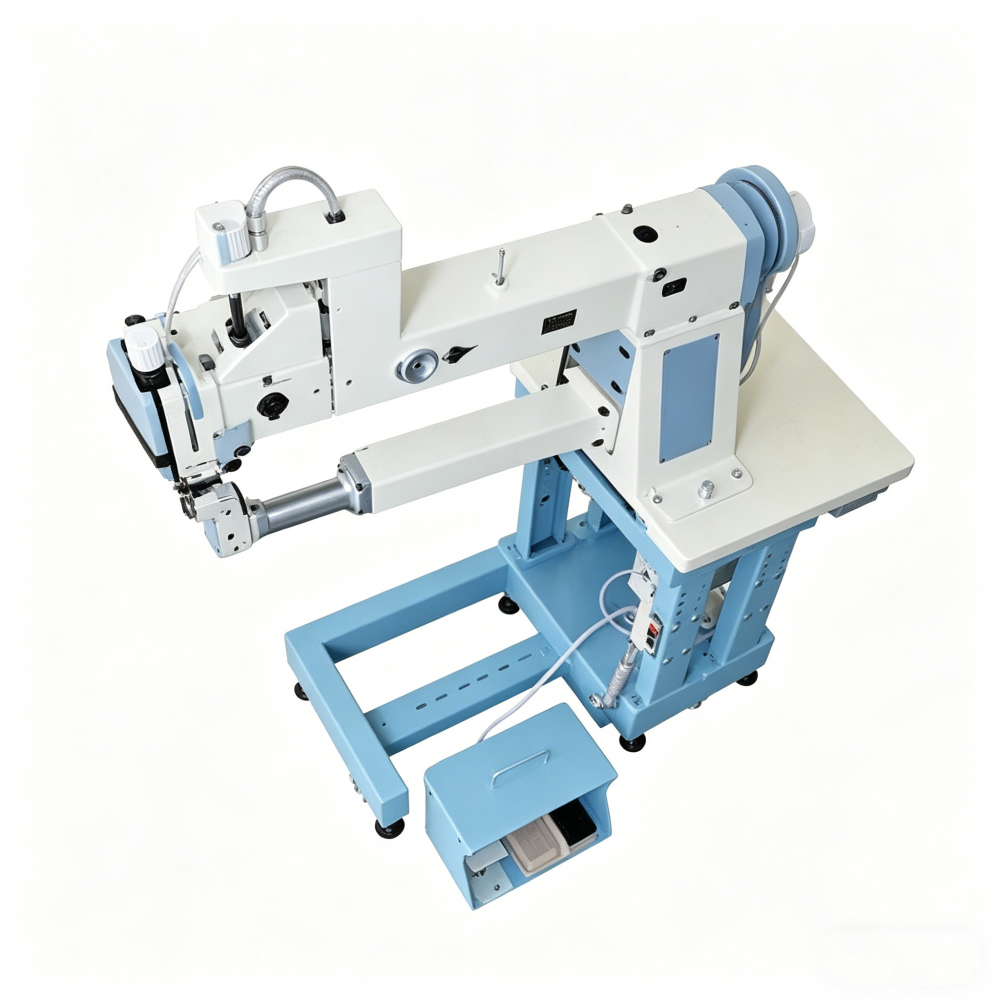

GR-267FB/A Horizontal Sewing Machine for Luggage & Cases

Product Parameters, Application Scenarios & Industries, Operating Instructions

1. Core Product Parameters

• Model: GR-267FB/A (Type A Straight Arm)

• Stitching Speed: 600 rpm

• Stitch Length: 3–12 mm (adjustable)

• Max. Sewing Thickness: 2–10 mm

• Needle: DD*1

• Stroke of Needle Bar: 54 mm

• Presser Foot Lift: 20 mm

• Head Lift: 50 mm (for easy insertion of large workpieces)

• Motor: 750W / 220V Servo Motor

• Net Weight: 316 kg

• Overall Dimensions (Type A): 158 × 68 × 170 cm (L × W × H)

2. Application Scenarios & Industries

Main Applications

• Center zipper assembly for hard luggage / rolling suitcases

• Side seams, gussets, expandable panels and front cover zipper sewing

• Heavy-duty sewing for hard cases, soft cases, PC luggage, ABS cases, fabric luggage

Applicable Industries

• Luggage & suitcase manufacturing

• Leather goods & soft packaging

• High-end outdoor bags & backpacks

• Special cases: military/aviation cases, equipment cases, instrument cases

3. Operating Instructions (Simplified)

3.1 Pre-operation Inspection

• Oil level: maintain at 1/2–2/3 of the sight glass

• Ensure correct threading without tangling

• Check that presser foot, needle position and safety covers are securely fastened

• Verify power supply, foot pedal and emergency stop function

3.2 Basic Operation

• Power on → wait for system self-check

• Speed control: foot pedal (light press = slow, deep press = fast)

• Stitch adjustment: set 3–12 mm via dial

• Head lifting: manual or automatic lift up to 50 mm

• Presser foot: automatic or manual lift up to 20 mm

• Needle stopping position: computer-controlled (up/down)

3.3 Threading & Bobbin

• Top thread: thread stand → tensioner → thread guides → needle

• Bobbin thread: fill bobbin fully → install in shuttle hook → draw up bobbin thread

• Stitch tension adjustment:

• Tight top thread: loosen top tension nut

• Tight bobbin thread: loosen small screw on bobbin case

3.4 Maintenance

• Daily: clean needle plate, feed dog and remove lint

• Weekly: check oil level and add special sewing machine oil

• Monthly: inspect drive belt, connecting rods and fasteners

• Prohibited: dry running, forced sewing on overly hard or thick materials

3.5 Safety Rules

• GR-267FB/A Great Rich Horizontal luggage sewing machine-1 (PDF)
  Download
