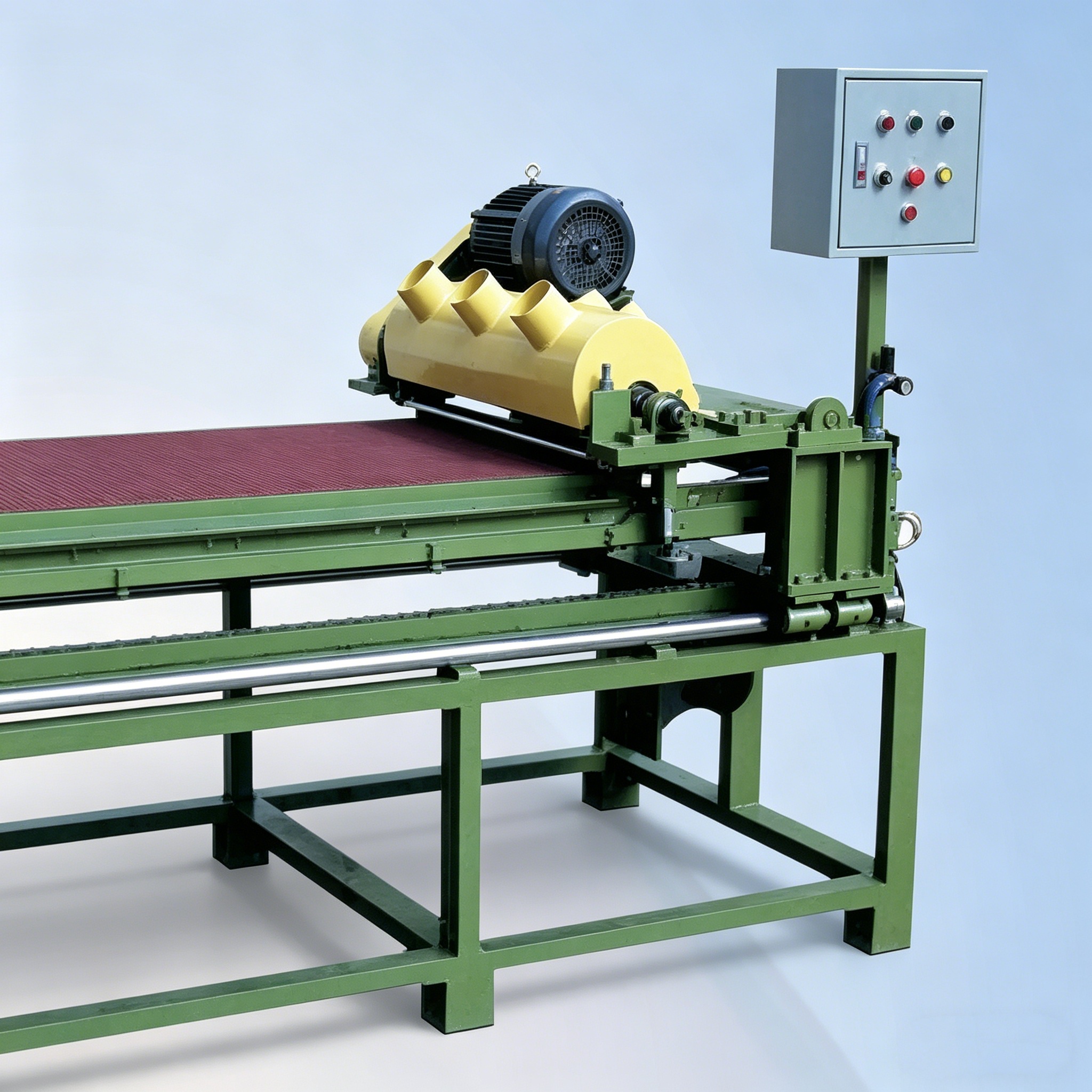

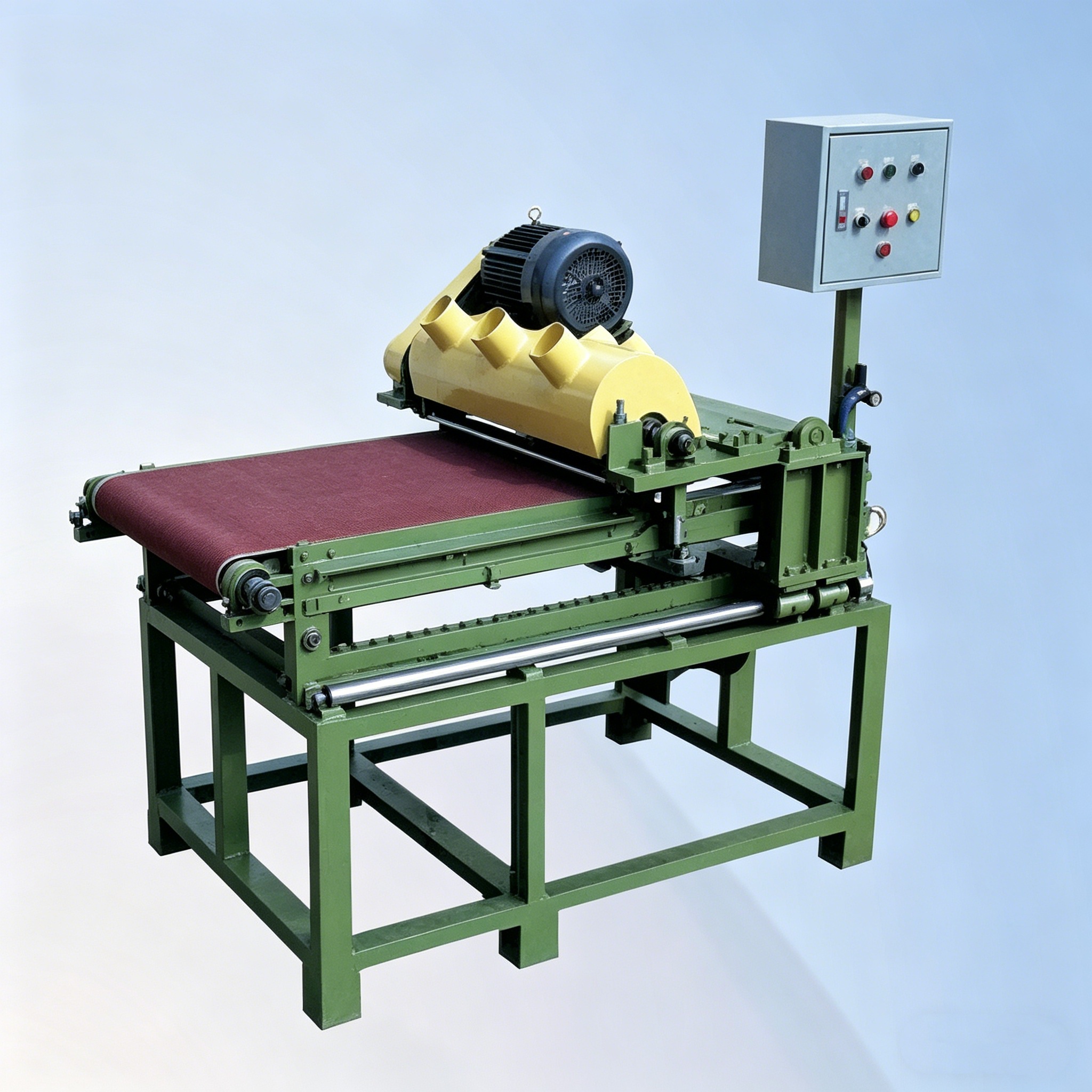

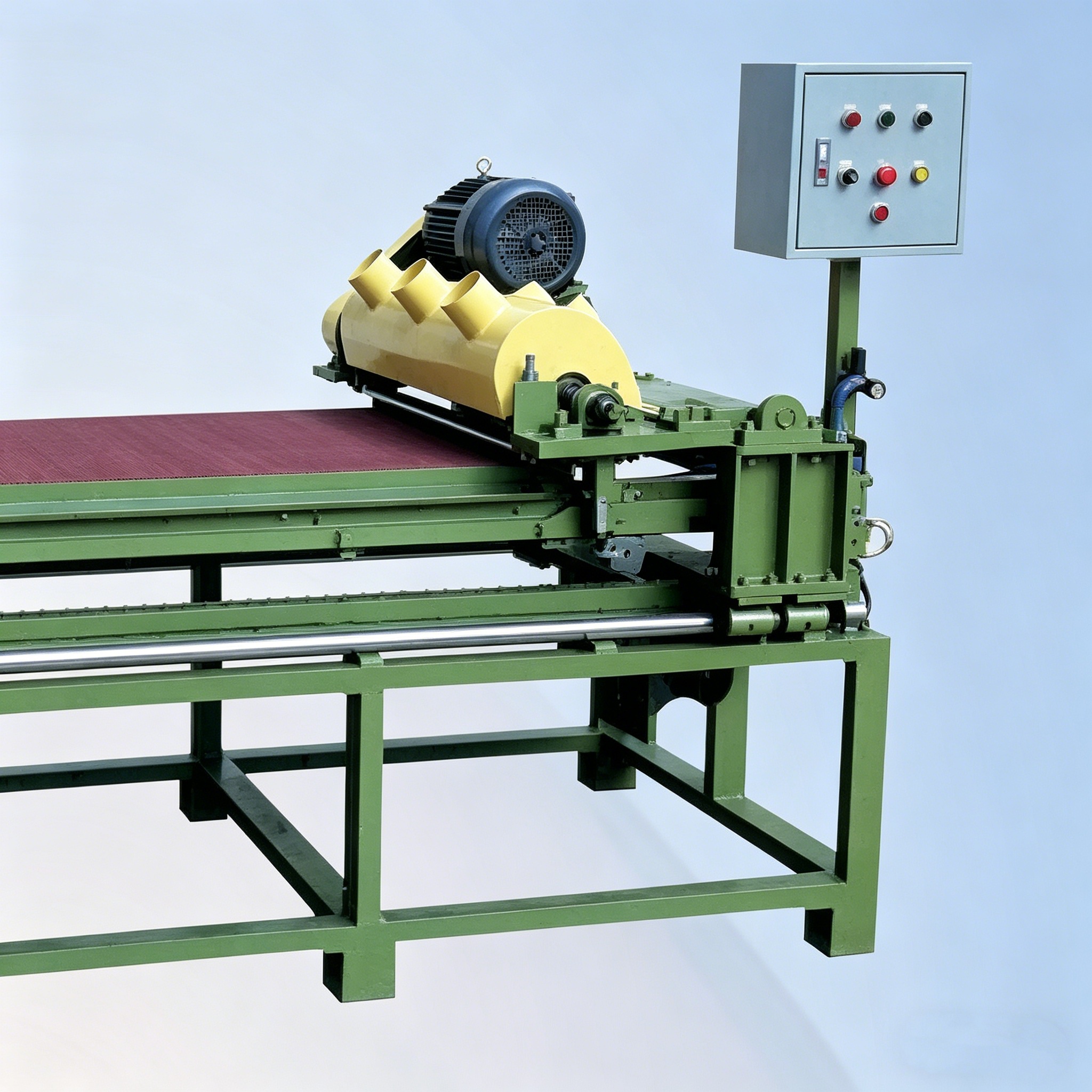

Sole Rhombic and Surface Roughening Machine

[Product Name] Sole Rhombic and Surface Roughening Machine

[Product Positioning]

A special surface treatment equipment for the shoemaking industry, integrating dual functions of rhombic pattern embossing and sole roughening. It can accurately process various sole materials such as EVA, PVC, and rubber sheets, realizing anti-slip texture forming and surface roughness improvement. It helps shoe factories achieve standardized and efficient production, and provides core guarantee for sole bonding and anti-slip performance.

[Application Scope]

Suitable for the sole processing of various shoe styles such as casual shoes, work shoes, and beach shoes, as well as pre-treatment before shoe material bonding. It is widely applicable to small and medium-sized shoe factories, shoemaking assembly lines, and shoe material processing plants.

[Core Advantages]

2. Multi-material Compatibility: Compatible with mainstream sole materials such as EVA, PVC, and rubber sheets, adjustable pressure and speed to meet multi-category processing needs;

3. High Efficiency and Automation: Automatic conveying + precise transmission, stable operation, can be seamlessly connected to the production line, suitable for 24-hour mass production;

4. Easy Operation: Visual control panel, simple parameter adjustment, operators can get started quickly, and easy maintenance;

5. Safe and Durable: Multiple safety protections, wear-resistant core components, few fragile parts, simple daily maintenance, and low long-term use cost.

[Technical Parameters]

Applicable materials: EVA, PVC, rubber sheets, etc.; Embossing precision: adjustable, supporting pattern customization; Roughening range: suitable for conventional sole sizes (customizable); Conveying speed: 0.5-5m/min stepless adjustable; Motor power: 2.2-4kW (optional according to demand); Working voltage: AC 220V/380V (supporting 110V overseas customization); Equipment net weight: 200-350kg; Working pressure: 0.1-0.5MPa adjustable.

[Operation Instructions]

Before starting the machine, check the power supply, clean the equipment, adjust the appropriate parameters, and put it into operation after no abnormality in no-load test run; Place the sole on the conveyor belt, start the equipment to complete the dual processing of embossing and roughening, and adjust parameters in real time to ensure the effect; After the operation is completed, turn off the machine, clean the equipment, and cut off the main power supply.

[Safety Notes]

Operators must wear labor protection equipment and are prohibited from touching the running modules when the equipment is in operation; Press the emergency stop button immediately when an abnormality occurs, cut off the power for inspection, and prohibit operation with faults; Non-professionals are prohibited from operating and maintaining, and ensure that the power supply is firmly grounded.

[Maintenance]

Clean the equipment and add lubricating oil daily; Check the lines and fasten the components weekly; Replace worn parts and calibrate parameters monthly; For long-term storage, it is necessary to prevent dust and rust, and place it in a dry and ventilated environment.

[Troubleshooting]

Equipment cannot start: Check the power supply and reset the emergency stop button; Abnormal vibration/noise: Fasten components, replace worn parts, and add lubricating oil; Unclear embossing: Increase pressure and replace modules; Uneven roughening: Stabilize the conveying speed and replace the grinding wheel; Electrical failure: Check the lines and replace damaged components.

[After-sales Service]

The equipment provides 12-month free warranty from the date of delivery (excluding man-made damage and force majeure), free on-site installation, commissioning and pre-job training, 7×24-hour technical support, and long-term supply of accessories to ensure stable operation of the equipment.
