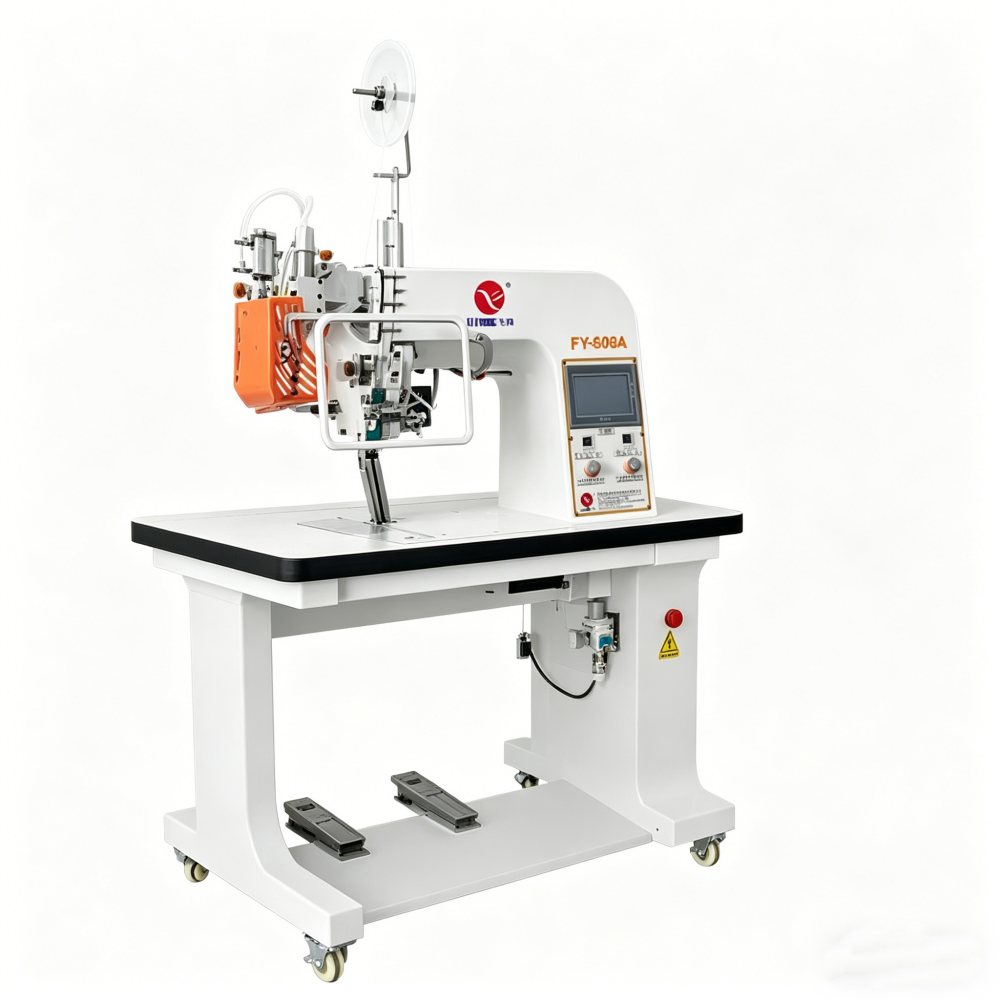

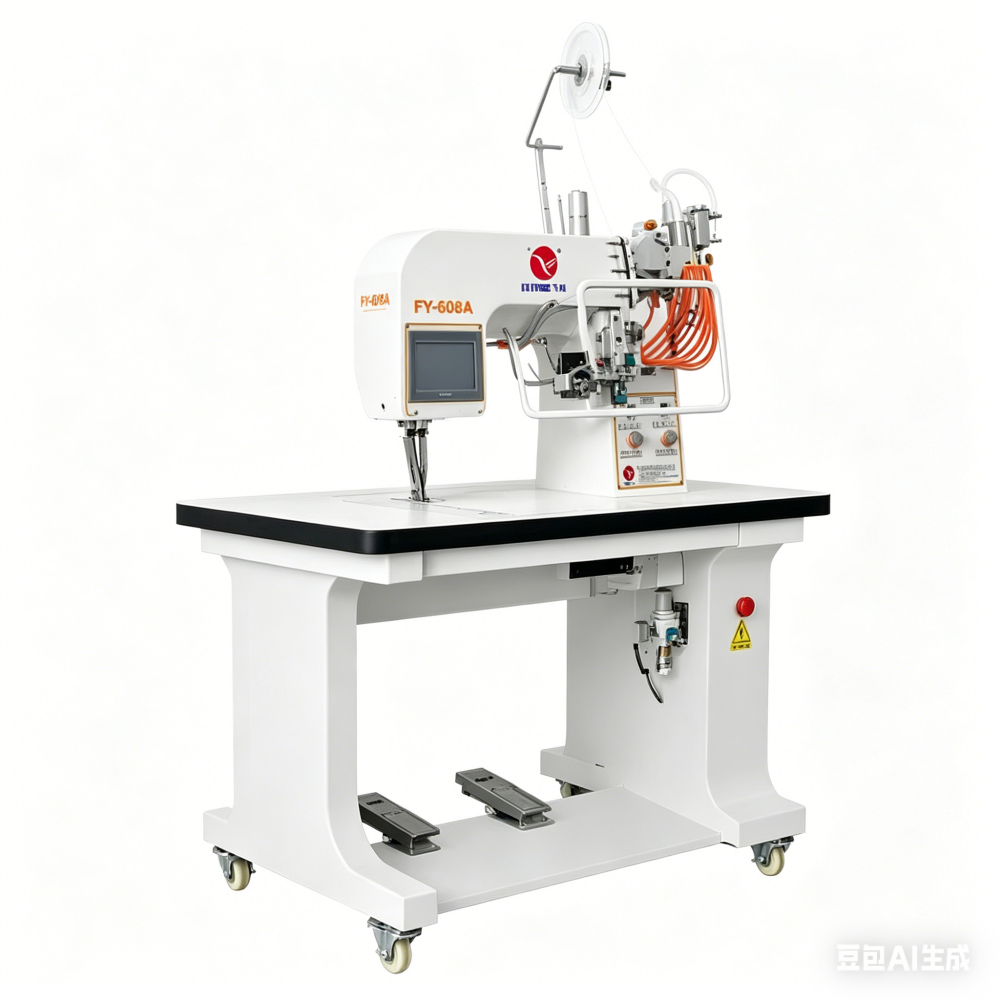

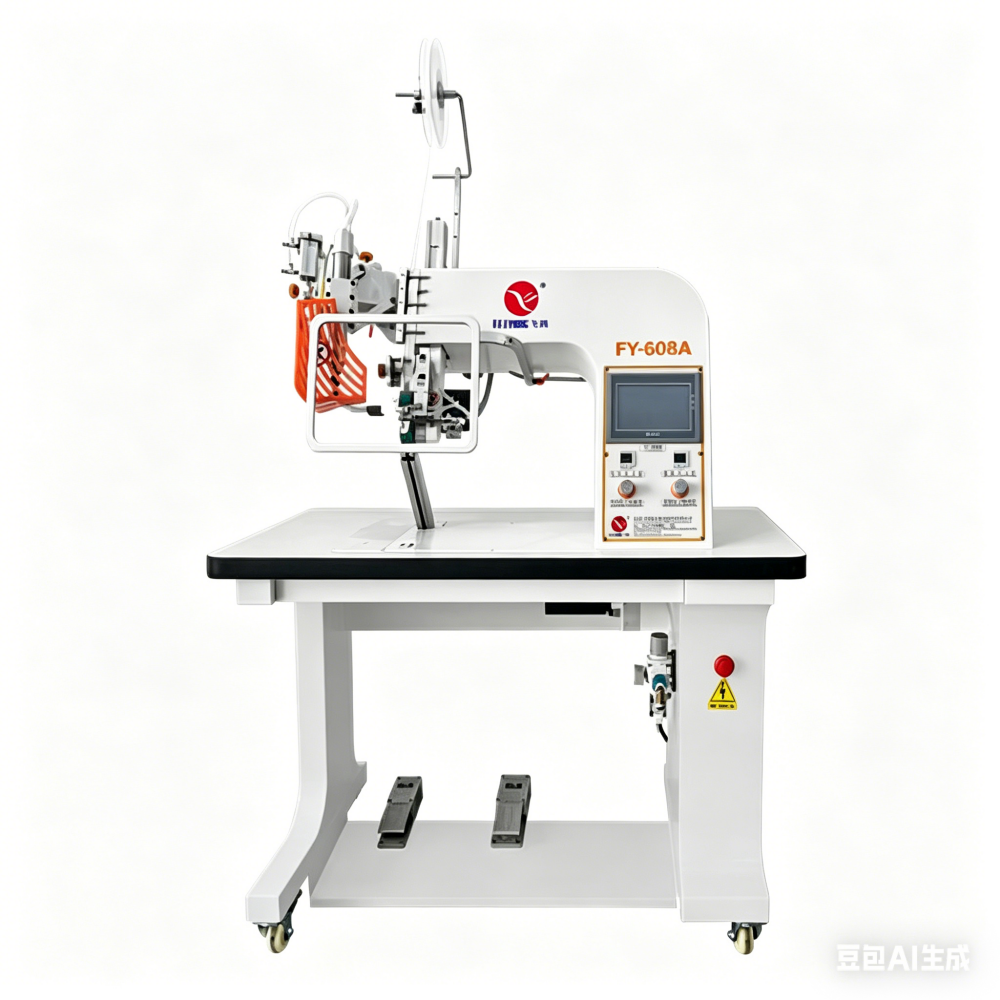

FY-608A Feiyang Hot Air Seam Sealing Machine
展位| Model Number | FY-608A |
| Brand | Feiyang |
| Dimension(L*W*H) | 1200mm(L) x 600mm(W) x 1490mm(H) |
| Net Weight | 180kg |
| Voltage | AC220V 1φ 50Hz/60Hz |
| Power | 3.6KW |
FY-608A | Features
PLC + Touchscreen Control: 7-inch ultra-large HD touch screen clearly displays speed, temperature, and programming parameters.
Temperature Control: PLC touchscreen control with a high-temperature alarm to protect the heating element.
Air Pressure Mode: Digital pressure display.
Upper and Lower Roller Differential Operation: Resolves issues with ultra-thin and elastic fabrics, prevents wrinkling at bends, with real-time variable speed sealing.
Language Function: Supports multiple languages.
Hot Air Gun Structure: 3D nozzle positioning system with 360° adjustable nozzle angle.
Hot Air Gun Insulation Device: Reduces risk of burns and protects material integrity.
Fully Automatic Tape Cutting: Supports up to 10 preset segments for automatic cutting.
技术参数 | Specifications
项目 | Item | FY-608A (Dual Differential Drive) |
电力需求 | Power Requirement | AC220V 1φ 50Hz/60Hz |
功率 | Power Consumption | 3.6KW |
控制模式 | Control Mode | PLC + Touchscreen Control |
压缩空气 | Compressed Air | 5KG/CM² |
熔接速度 | Sealing Speed | 2–25 m/min (Adjustable) |
最高熔接温度 | Max. Sealing Temperature | 800°C |
电热管功率 | Heater Power | AC110V, 1800W |
风枪口 | Nozzle Size | 18mm–25mm (Optional) |
操作方法 | Operation Method | Two-stage foot pedal |
压力滚轮宽度 | Pressing Roller Width | 25mm (Standard, customizable) |
工作台面积 | Working Table Dimensions | 1200mm(L) x 600mm(W) |
机器外型尺寸 | Machine Dimensions | 1200mm(L) x 600mm(W) x 1490mm(H) |
重量 | Weight | N.W.: 180kg / G.W.: 230kg |
