Positioning Punch For Shoe Pattern Making, Steel Hole Locating Punch For Footwear Template Marking
Booth| Model Number | PHP-STD |
| Brand | GISMA Guangzhou |
| Net Weight | 60 g |
Positioning Punch For Shoe Pattern Making, Steel Hole Locating Punch For Footwear Template Marking
Model: PHP-STD
| Specification | Parameter Details |
|---|---|
| Overall Total Length | 135 mm |
| Handle Material | Brass knurled anti-slip body + rubber press cap |
| Tip Material | High carbon hardened steel |
| Tip Diameter | 2 mm |
| Single Packaging | Individual OPP bag |
| Single Net Weight | 65 g |
| Quantity Per Export Carton | 200 pcs |
| Carton Dimension (L×W×H) | 260×180×140 mm |
| Carton Net Weight | 13 KG |
| Carton Gross Weight | 15 KG |
Positioning Punch For Shoe Pattern Making

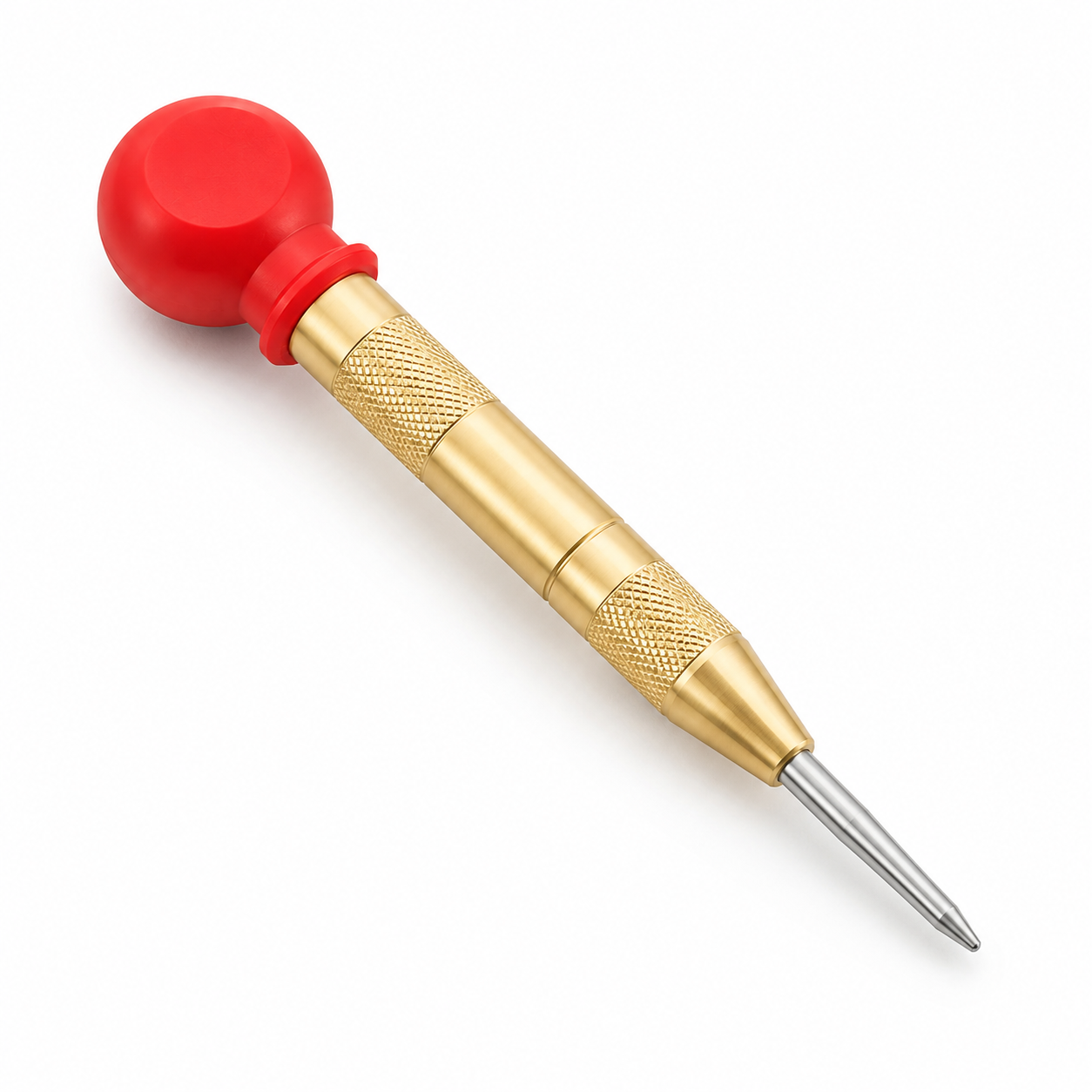

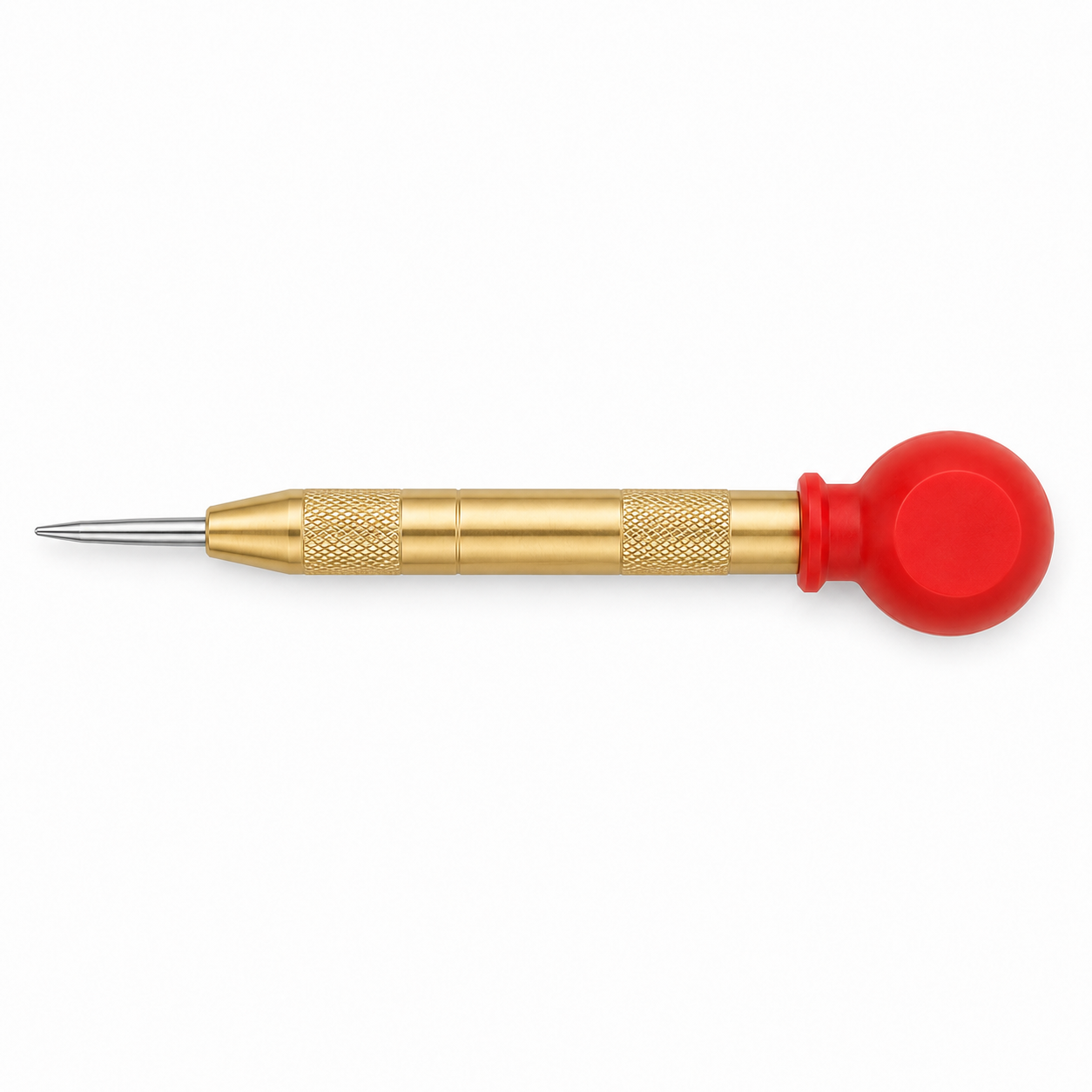

This special‑purpose positioning punch for shoemaking adopts a built‑in automatic spring‑return structure; simply press vertically downward to complete positioning indentation or fixed‑point punching on shoe‑pattern templates in one stroke without repeated hammering, greatly boosting pattern‑maker marking efficiency. Its knurled brass handle delivers ample friction for stable non‑slip grip and prevents slipping‑off even under long‑time repetitive operation.
The punch tip is made of quenched‑hardened high‑carbon steel featuring high hardness and outstanding wear‑resistance, retaining sharp cutting edges after frequent continuous workshop impacts to produce neat, clean punch holes, and a round rubber buffer cap on the top cushions pressing impact and effectively alleviates hand soreness and fatigue caused by prolonged work. Adopting precision concentric design, the punch tip ensures centered hole positions without offset under vertical pressing for accurate pattern grading and marker positioning, and delivers moderate standard punching depth suitable for paper‑pattern cardstock, hard paperboard and thin‑leather templates without fully piercing and damaging materials.
Compact and slim‑bodied, this tool is easy to store in pattern‑room tool drawers and convenient to carry for off‑site sample development, serving as an indispensable basic tool for shoe‑pattern making. All metal components receive anti‑rust treatment to adapt to regular workshop conditions with dust and glue stains, and factory‑controlled punch‑tip dimensions and punching accuracy guarantee consistent batch specifications for unified allocation in shoe‑factory pattern rooms and standardized positioning benchmarks.

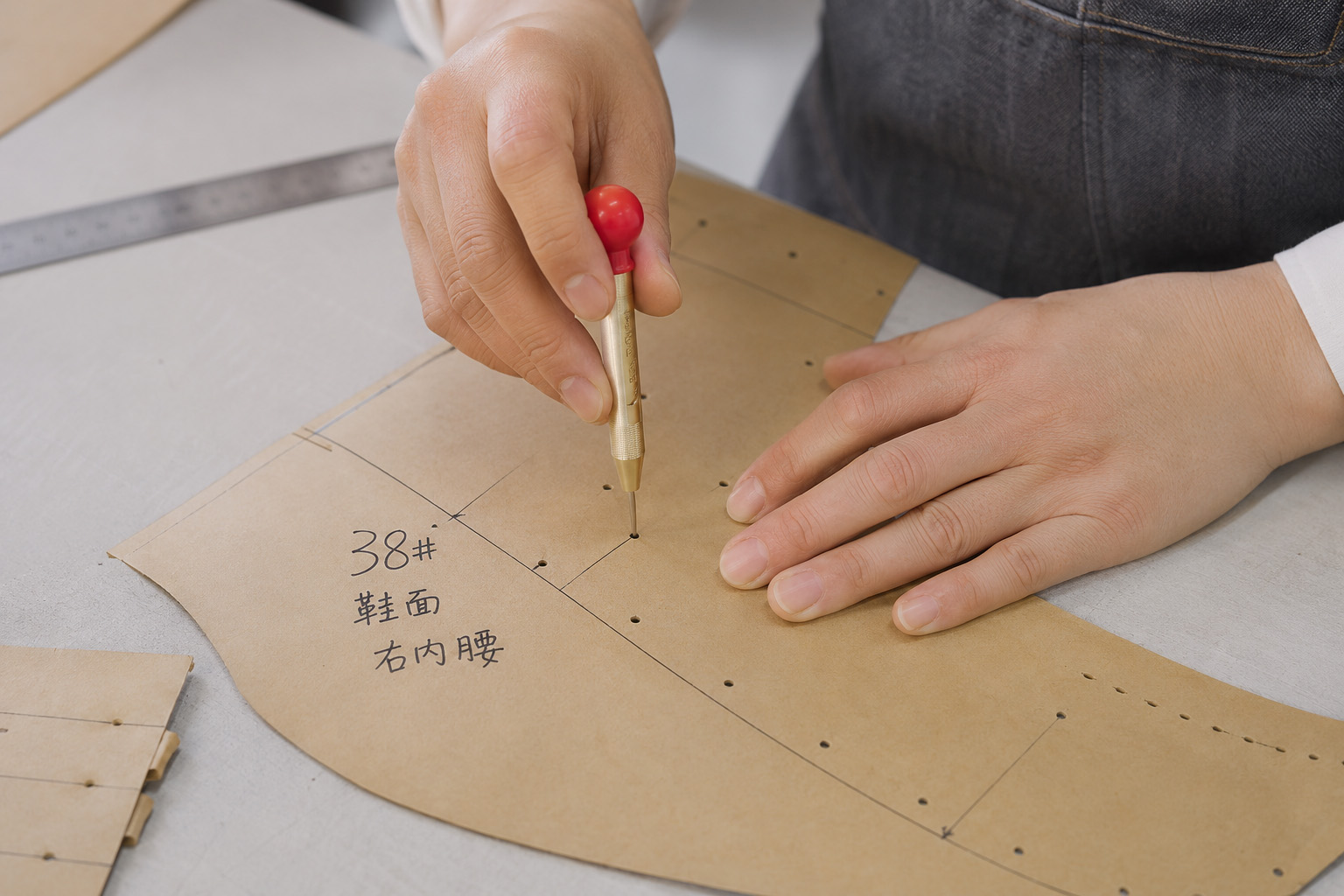

Featuring simple structure for easy disassembly and maintenance, the replaceable punch tip can be detached individually upon wear instead of replacing the whole tool to cut long‑term consumable costs. Widely used in shoemaking pattern‑making rooms, original footwear‑design studios, custom‑shoe workshops and new‑sample‑development departments, this positioning punch performs fixed‑point marking, indentation positioning and small‑hole punching on shoe‑pattern paper, cardboard templates and thin leather, assisting pattern layout, size grading and pre‑positioning before cutting for the development and sampling of sneakers, leather shoes, casual shoes and boots.
Follow standardized operation: align the punch tip precisely with preset marking points on templates, apply stable vertical pressure onto the rubber cap to finish indentation or punching, and the internal spring retracts the punch automatically upon pressure release; wipe paper debris off the punch tip after daily work and avoid lateral torque during pressing to prevent tip bending and deformation. For storage and maintenance, place idle tools in dry environment and apply a thin coat of anti‑rust oil on steel punch tips to resist rusting caused by moisture; protect tips from heavy impact and hard‑object scratching, never stack heavy loads on top of the tool to avoid tip damage.
