Fully Automatic Vacuum Exposure Unit Automatic Vacuum Screen Stencil Exposure Machine Full Auto Vacuum Adsorption Plate Exposure Equipment For Shoe Factory Screen Printing Plate Ma
Booth| Model Number | EB1000 / EB1300 |
| Brand | GISMA Guangzhou |
| Dimension(L*W*H) | 1050×1120×780mm / 1350×1420×820mm |
| Net Weight | 245kg / 310kg |
| Voltage | AC220V 50Hz / AC220V 50Hz |
| Power | 2.0 KW / 2.6 KW |

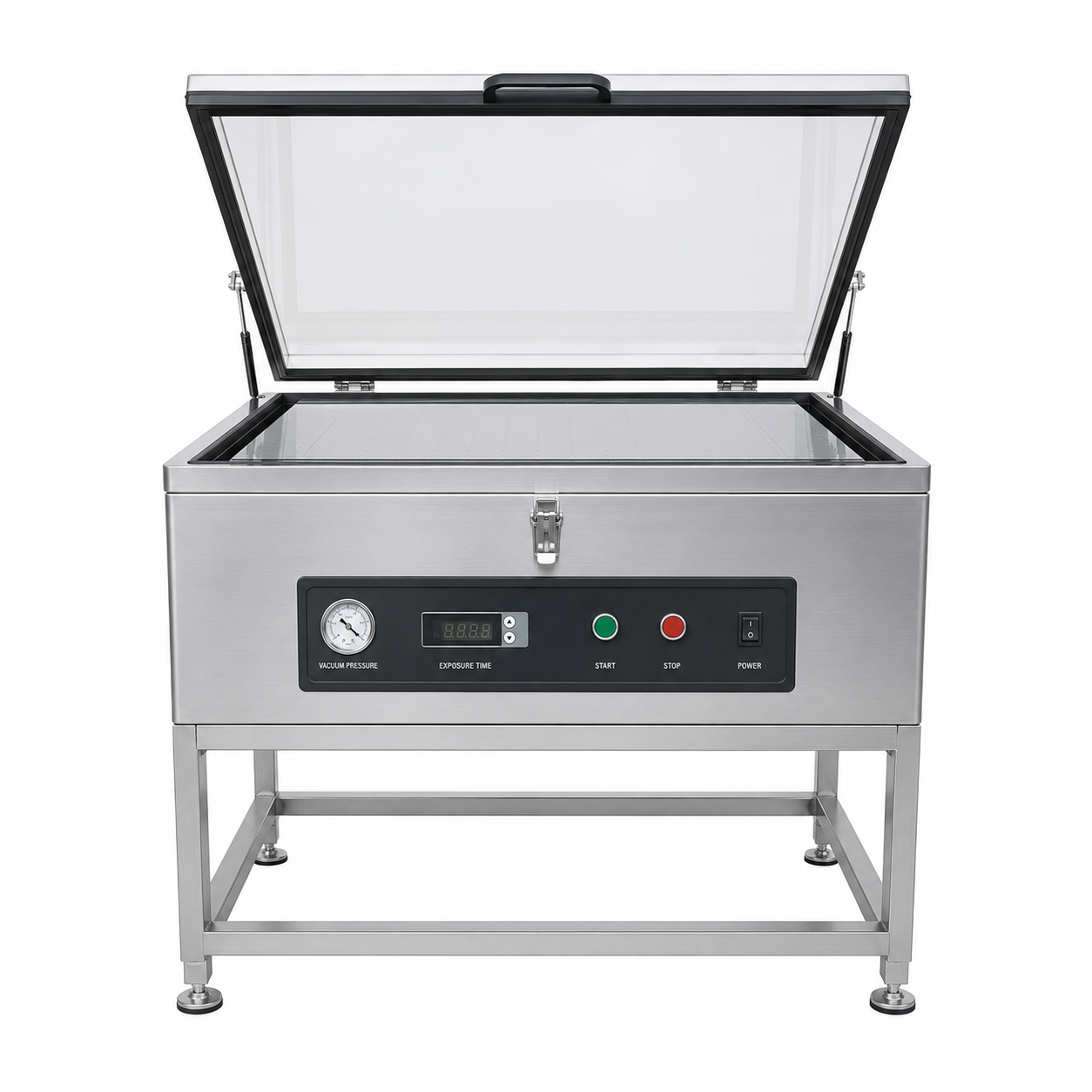

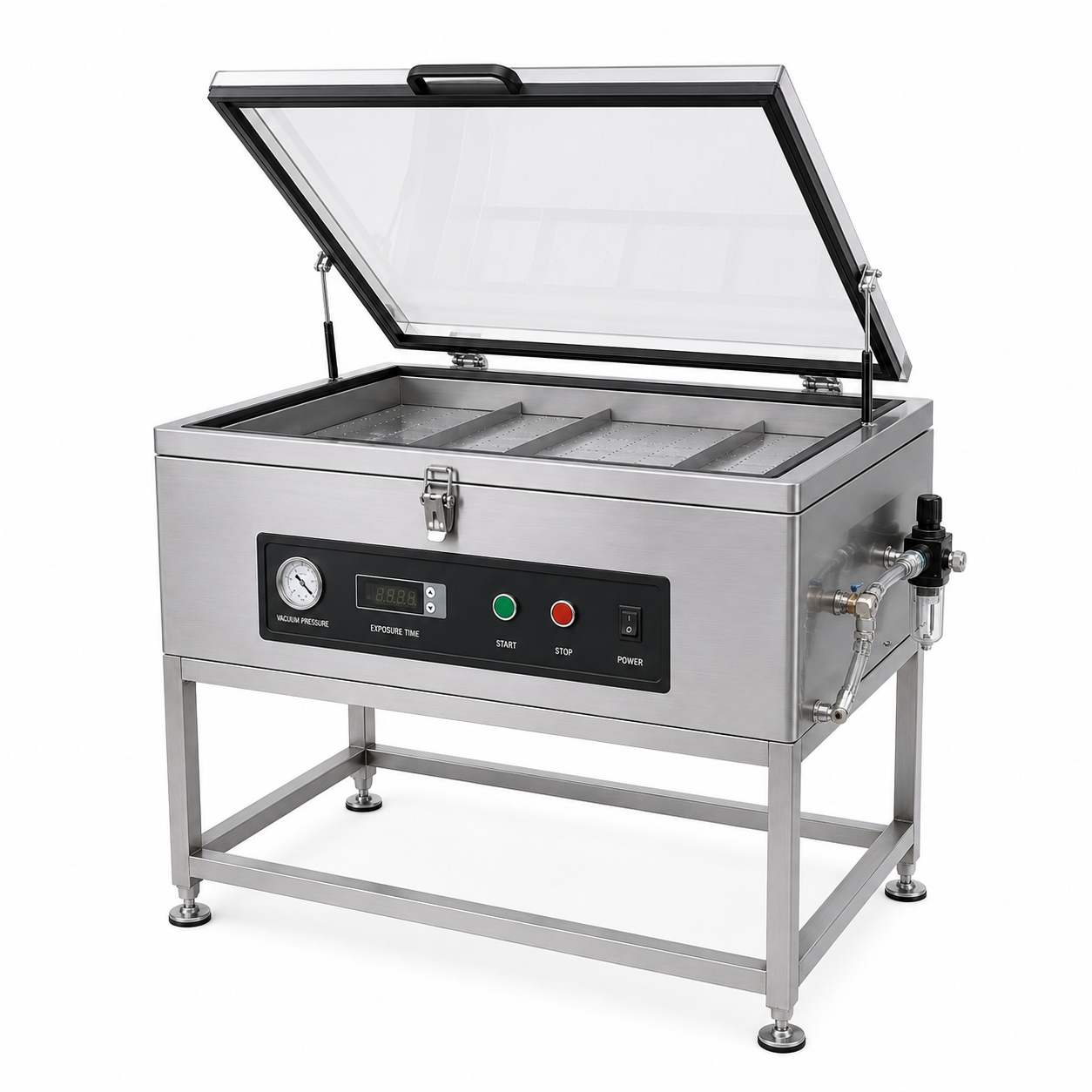

Vacuum Plate Exposure Machine
Model: EB1000 / EB1300
| Specification | EB1000 | EB1300 |
|---|---|---|
| Effective Exposure Area | 1000×900 mm | 1300×1200 mm |
| Vacuum System | Strong silent vacuum pump, fast air exhaust | Strong silent vacuum pump, fast air exhaust |
| Light Source | High-power uniform UV lamp group | High-power uniform UV lamp group |
| Exposure Precision | ±0.04 mm clear pattern edge | ±0.04 mm clear pattern edge |
| Exposure Time Range | 1s ~ 999s adjustable | 1s ~ 999s adjustable |
| Max Plate Thickness | 5 mm | 5 mm |
| Smallest Exposure Line | Φ0.1 mm fine tiny lines | Φ0.1 mm fine tiny lines |

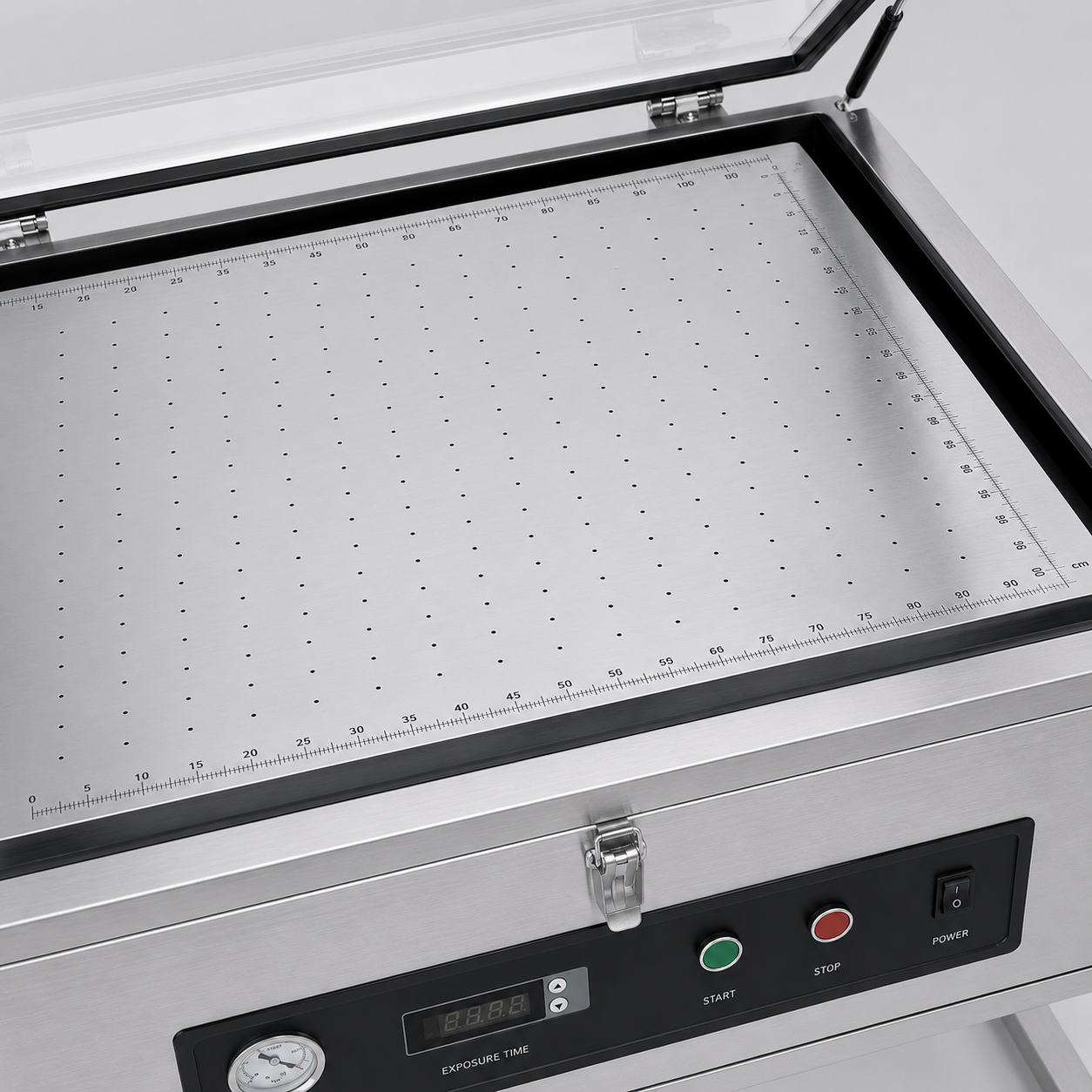

| Material Fix Way | Full surface vacuum adsorption cover | Full surface vacuum adsorption cover |
| Light Control | Independent light power adjustment | Independent light power adjustment |
| Working Power | 2.0 KW | 2.6 KW |
| Working Voltage | AC220V 50Hz | AC220V 50Hz |
| Support Plate Material | Silk screen film, photopolymer plate, offset film | Silk screen film, photopolymer plate, offset film |
| Operation Screen | Touch screen | Touch screen |
| Machine Size (L×W×H) | 1050×1120×780mm | 1350×1420×820mm |
| Wooden Box Size (L×W×H) | 1120×1190×850mm | 1420×1490×890mm |
| Net Weight | 245 KG | 310 KG |
| Gross Weight | 275 KG | 345 KG |
Vacuum UV Exposure Unit (Vacuum Screen Printing Frame)

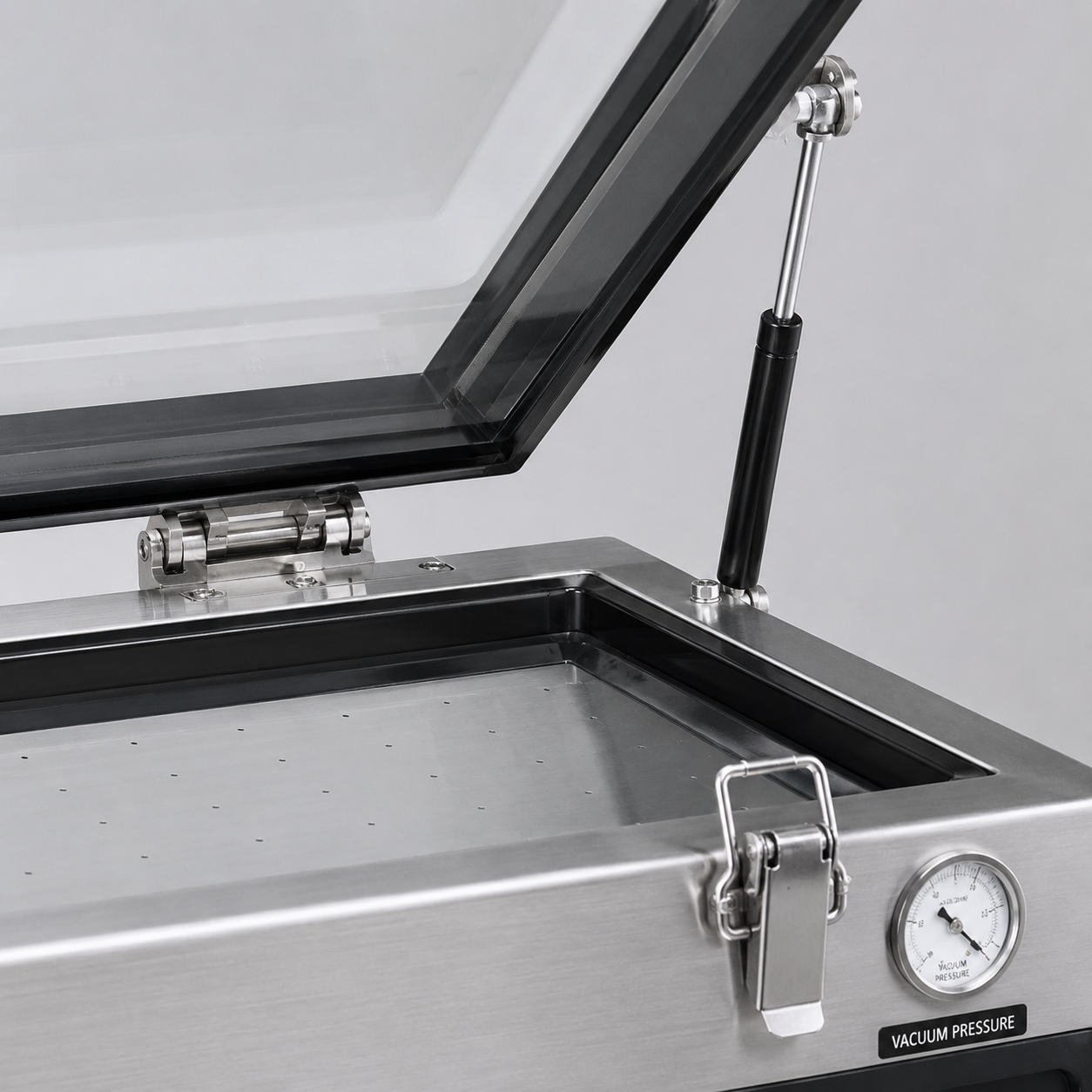

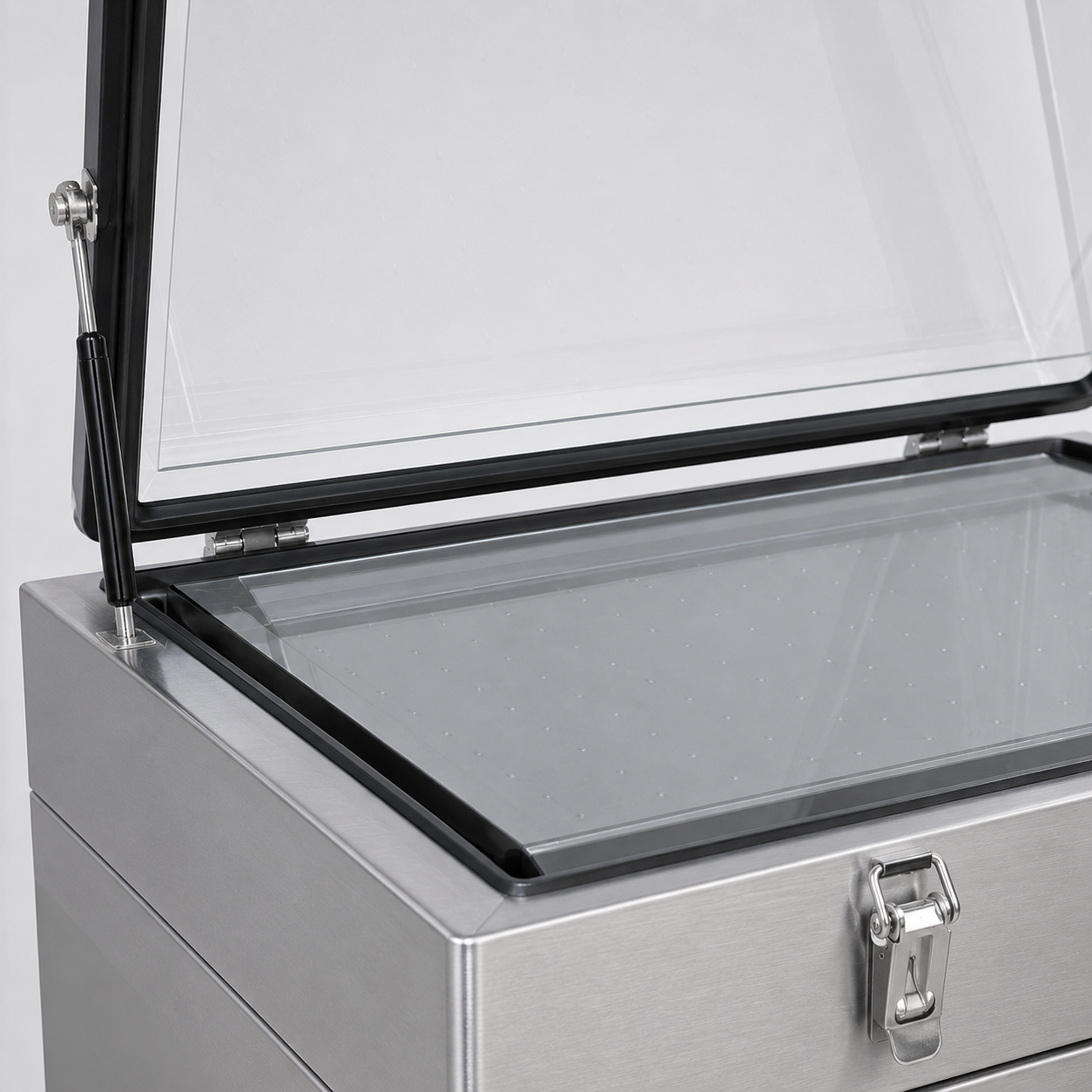

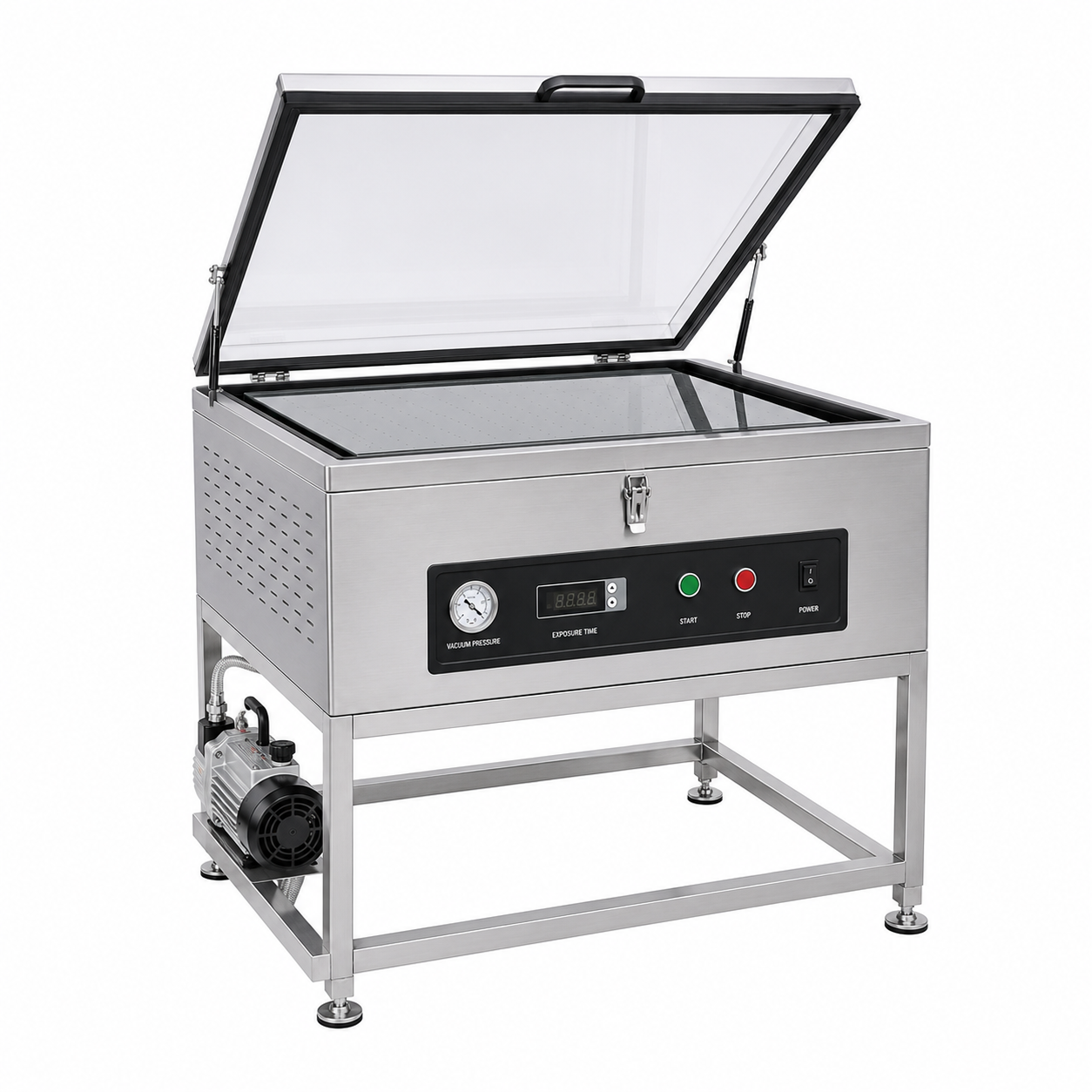

This equipment boasts multiple core performance advantages. Equipped with a silent and stable vacuum pump, it delivers fast pumping speed and long service life. The power of UV lamps is freely adjustable, compatible with both thin film positives and thick photosensitive plates. The machine is fitted with a fully transparent sealed cover, preventing air bubbles inside during plate making and fundamentally avoiding printed pattern distortion.
The exposure time supports automatic timing setting from 1 to 999 seconds, matching plate-making raw materials of various materials. The unit features one-touch automatic exposure function, eliminating repeated parameter adjustments for operators. Multiple internal lamps are evenly arranged to achieve uniform light distribution without light and shade differences. Matched with a touch display screen, all operating parameters can be adjusted simply and intuitively.
It can produce fine lines, full-solid background patterns and all kinds of complex shoe texture patterns, compatible with all conventional photosensitive plates on the market. The cover and vacuum pump related components are detachable for extremely convenient daily cleaning and maintenance.
The whole machine is equipped with aging-resistant and wear-resistant vacuum hoses, effectively cutting maintenance and replacement costs under long-term production. It also features an automatic alarm mechanism for air leakage and lamp failure, greatly reducing scrap loss of raw materials such as plates and film positives.
This vacuum exposure unit covers a wide range of applicable industries, mainly serving shoemaking workshops, leather embossing processing plants, shoe screen printing workshops, luggage hardware processing enterprises and craft gift printing factories. Equipped with screen printing film positives, photosensitive resin plates and offset negatives, it can complete exposure plate making. It is widely used for shoe pattern development, sample making and mass production of screen stencils.
It can process shoe trademarks, sneaker surface textures, children’s shoe decorative patterns, leather bag embossing molds and all kinds of packaging printing patterns. Light intensity and vacuum sealing suction can be flexibly adjusted to fit plate-making materials of different thickness specifications. The finished stencils feature clear pattern edges and high dimensional accuracy, fully complying with strict processing quality standards for screen printing in major shoe factories.

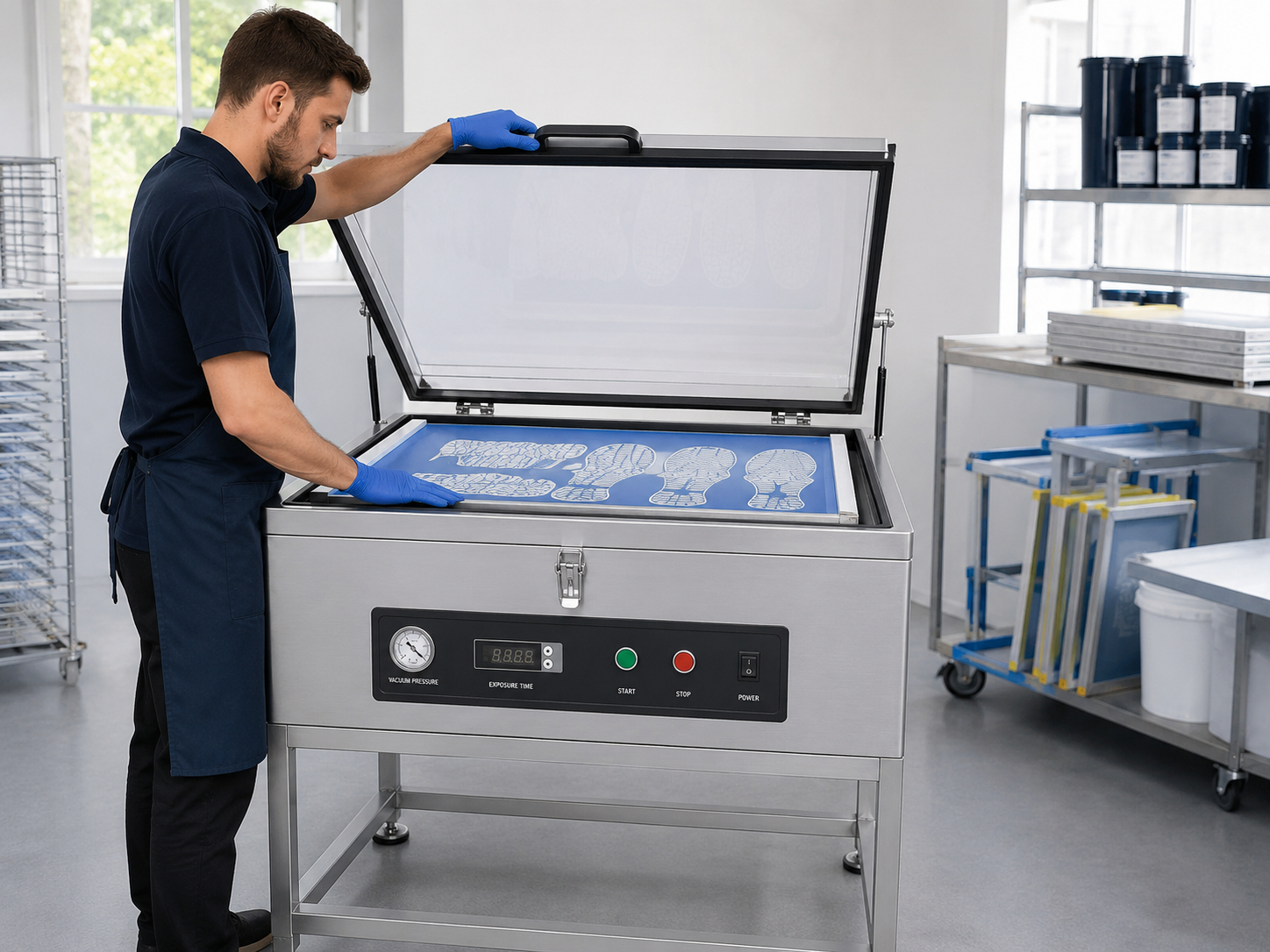

The equipment features standardized and complete operating procedures. Before startup, operators shall inspect the machine power supply, vacuum pipeline and operating status of UV exposure lamps one by one. Adjust lamp power, vacuum suction and exposure time according to the thickness of the applied plates. Before formal mass plate making, conduct sample exposure test with small pieces of film positives. During operation, lay film positives and photosensitive plates flat in place, activate the vacuum pumping function until all air inside the worktable is fully exhausted. After completing all daily plate-making work, cut off the main power supply of the machine and clean residual waste and debris on the worktable in a timely manner.
