Automatic Oblique Cutting Machine, EVA Foam Sole Slope Trimming Splitting Machine For Shoe Making
Booth| Model Number | OBL-CUT-EVA-600 |
| Brand | GISMA Guangzhou |
| Dimension(L*W*H) | 2400×2000×1800 mm |
| Net Weight | 3100 KG |
| Voltage | 3.0 KW / 4.5 KW |
| Power | AC220V 50Hz |
Automatic Oblique Cutting Machine, EVA Foam Sole Slope Trimming Splitting Machine For Shoe Making
Model:OBL-CUT-EVA-600
| Specification | Parameter Details |
|---|---|
| Item No. | OBL-CUT-EVA-600 |
| Working Effective Width | 600 mm |
| Adjustable Cutting Thickness Range | 5–100 mm |
| Thickness Tolerance | ±0.1 mm |
| Feeding Speed | 100 m/min adjustable |
| Main Motor Power | 3.7 KW |
| Grinding Motor Power | 0.75 KW |
| Working Voltage | AC380V 50Hz |

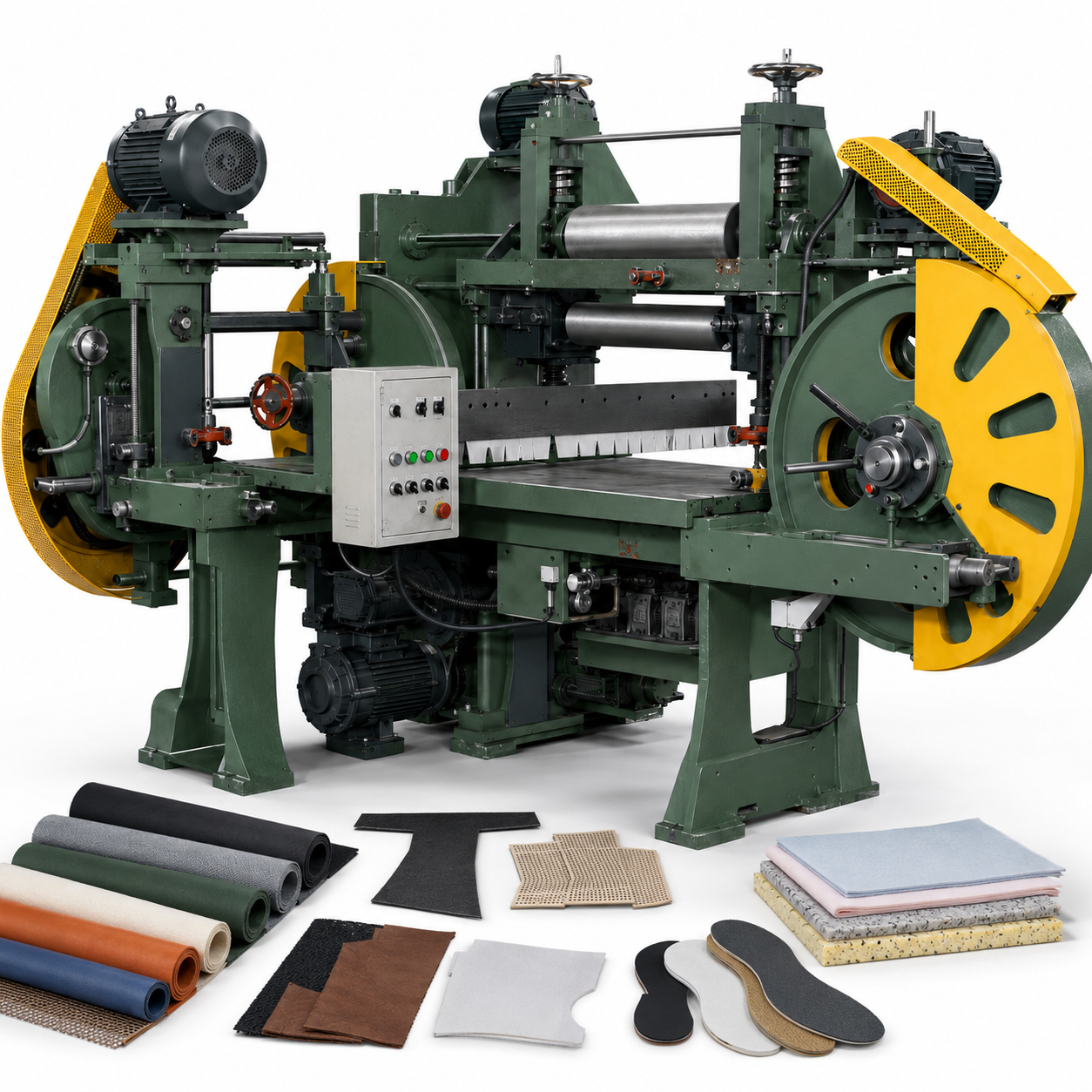

| Applicable Materials | EVA, Bio-EVA, PE, XPE, rubber foam, slipper midsole foam |
| Operation Panel | Digital display with manual / auto mode switch |
| Machine Overall Dimension(L×W×H) | 2400×2000×1800 mm |
| Export Wooden Box Size(L×W×H) | 2500×2100×1900 mm |
| Total Packing Volume | Approx. 9.975 CBM |
| Net Weight | 3100 KG |
| Gross Weight | 3350 KG |

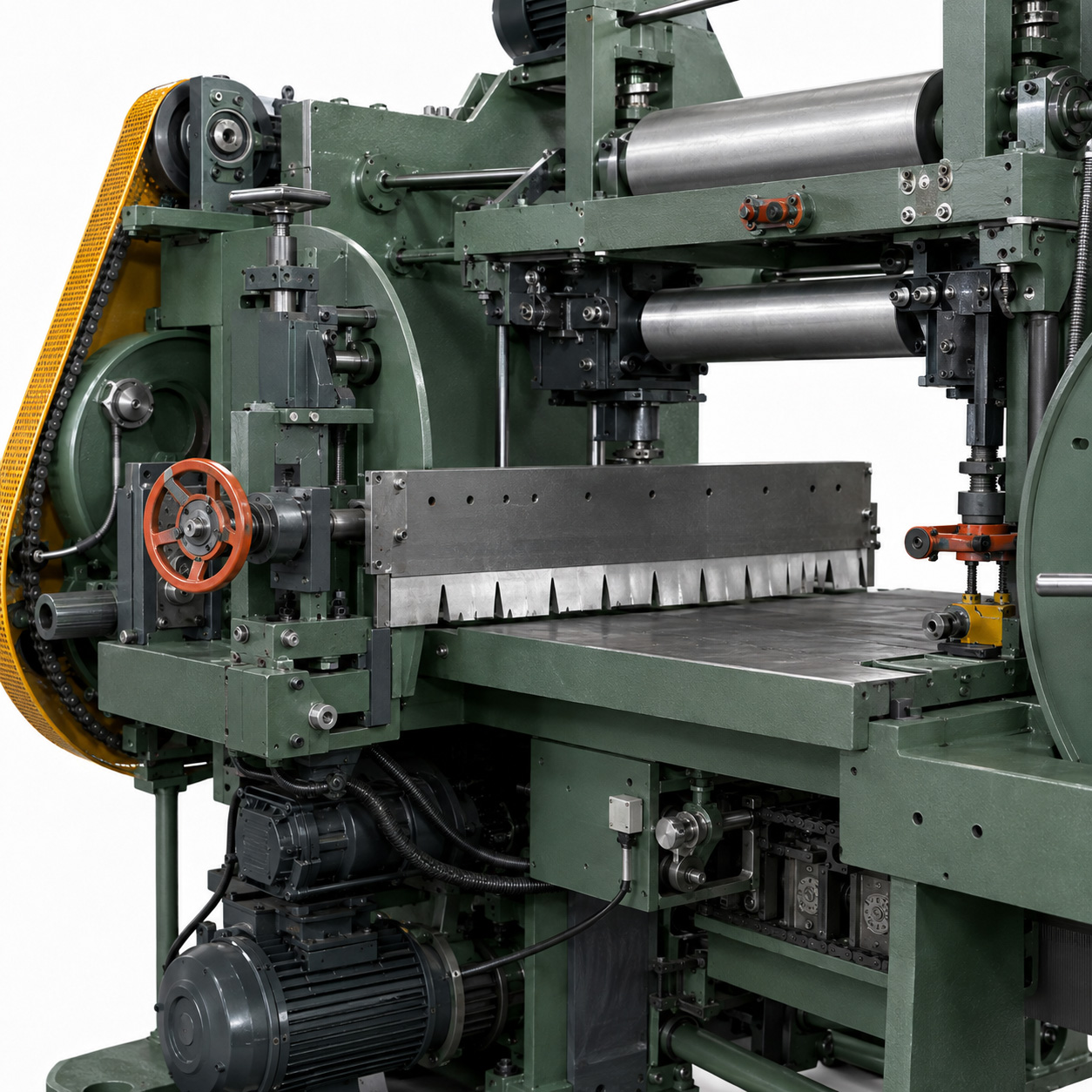

Automatic Oblique Cutting Machine
This Automatic Oblique Cutting Machine is equipped with an automatic blade self-grinding structure, featuring long service life and burr-free, smooth cutting surfaces. Fitted with a digital thickness adjustment panel, it achieves precise tolerance control and effectively reduces foam material consumption. Adopting dual independent drive motors, the equipment delivers stable, continuous and high-speed feeding performance.
The fully enclosed foam debris collection cover effectively reduces workshop dust pollution, and the quick-calibration feeding roller design enables convenient blade wear compensation without equipment disassembly. It supports one-key switching between manual and automatic modes to adapt to diverse flexible production requirements. Equipped with an emergency stop button and full protective housing, the machine completely avoids cutting safety hazards. It is widely compatible with both conventional petroleum-based EVA and sugarcane-derived bio-based EVA foam materials.
The detachable machine shell and blade components facilitate simple and efficient daily maintenance. Featuring low vibration and stable operation, the equipment supports long-term failure-free continuous production. The uniform feeding pressure prevents crushing and tearing of the cellular structure of soft bio-foam materials, and its compact structural layout perfectly matches automated sole assembly production lines.

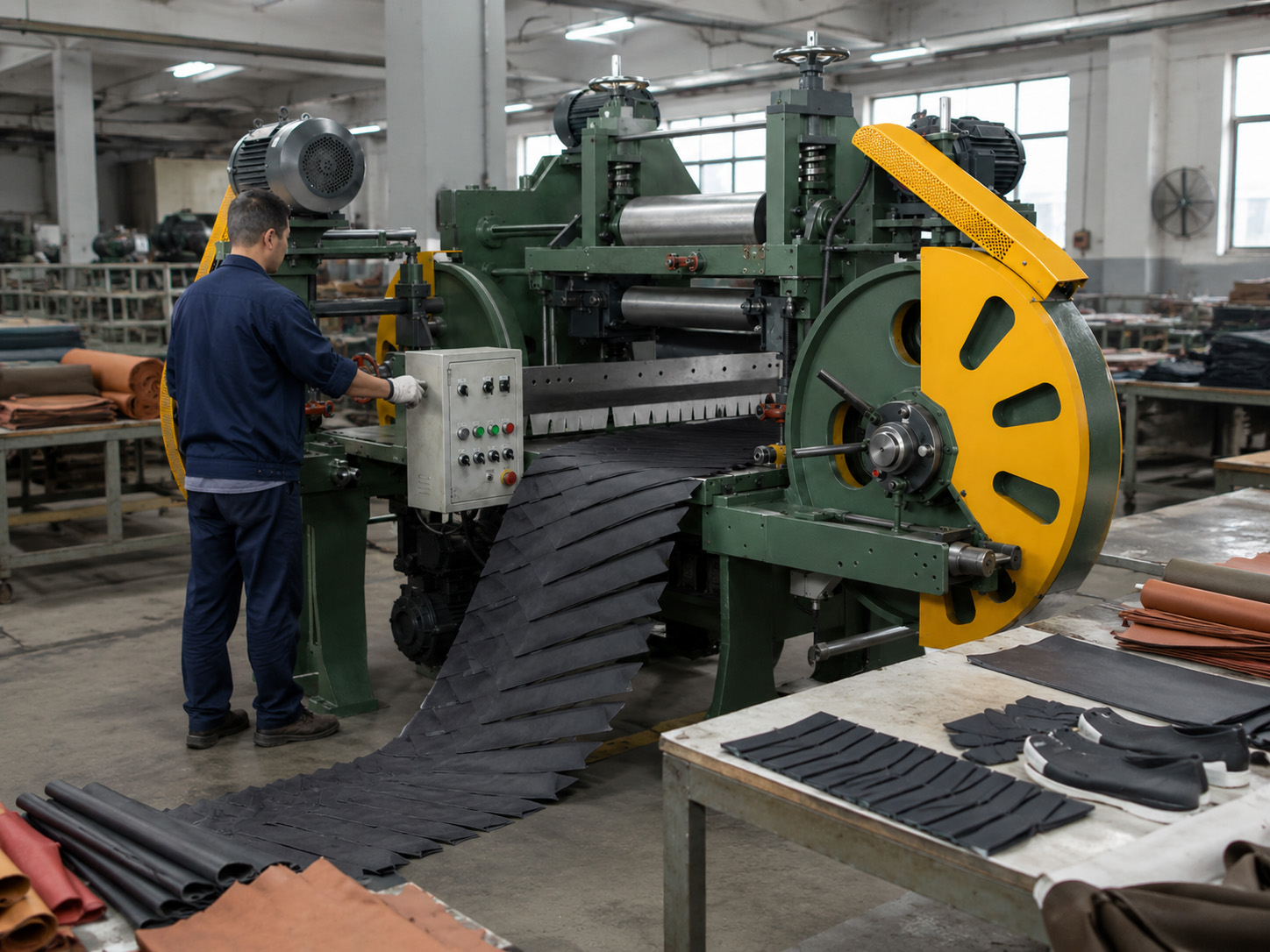

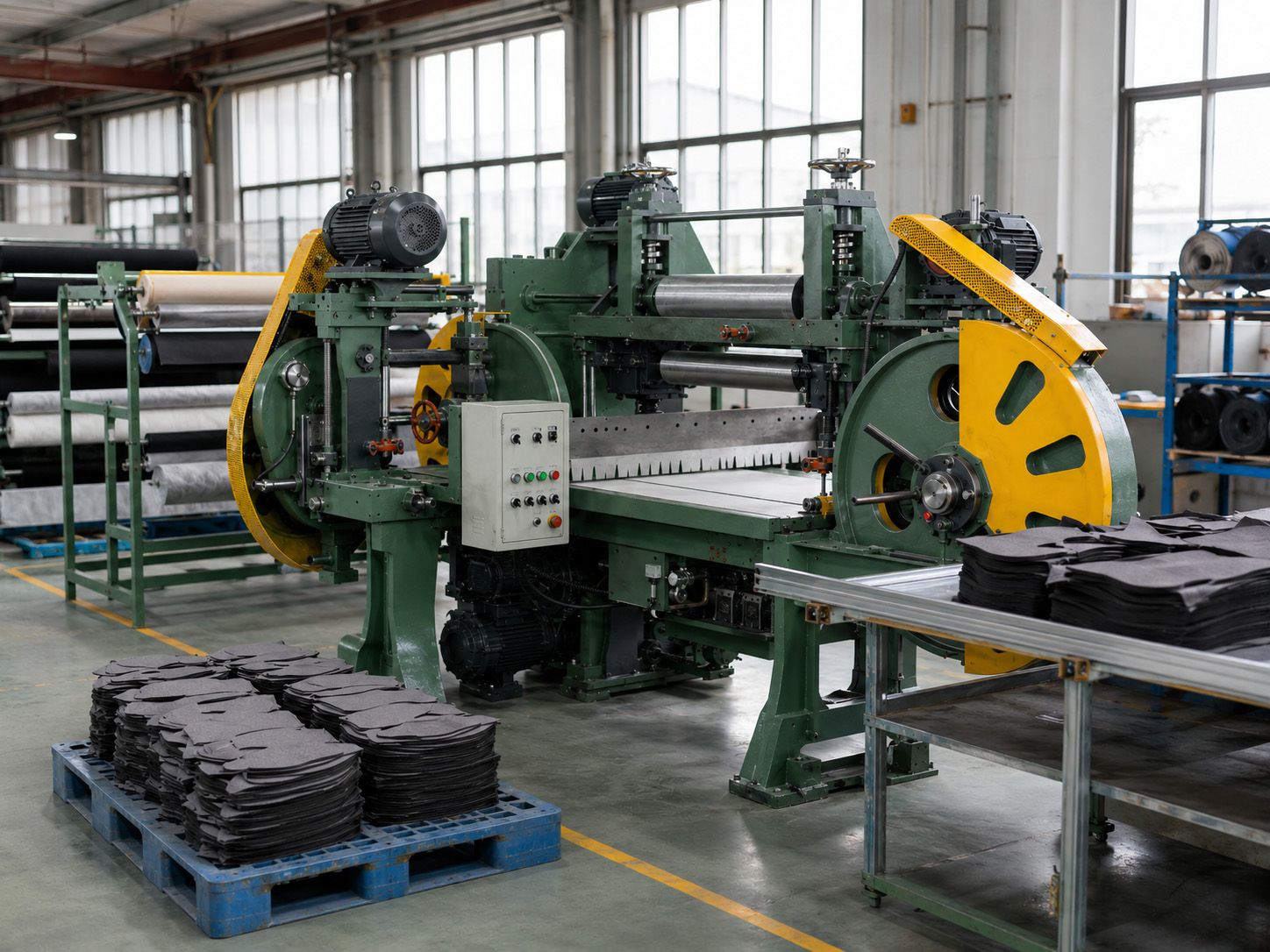

Suitable for foam sole processing workshops, sneaker factories, slipper manufacturers, eco-friendly bio-EVA processing plants and sports protective gear factories, this machine is capable of slope chamfer trimming and equal-thickness splitting for various foam materials including EVA, bio-EVA, XPE, PE and rubber foam. It is ideal for processing running shoe midsoles, thick foam substrates of dad shoes, front and rear slope trimming of beach slippers, shock-absorbing foam cushions for children’s shoes, buffer linings for leather goods and foam accessories for sports protection. With adjustable feeding speed and cutting thickness, the machine adapts to all types of soft foam materials and produces uniform and smooth chamfer surfaces, meeting the dual production needs of large-scale mass production and small-batch customized processing for footwear manufacturers.
