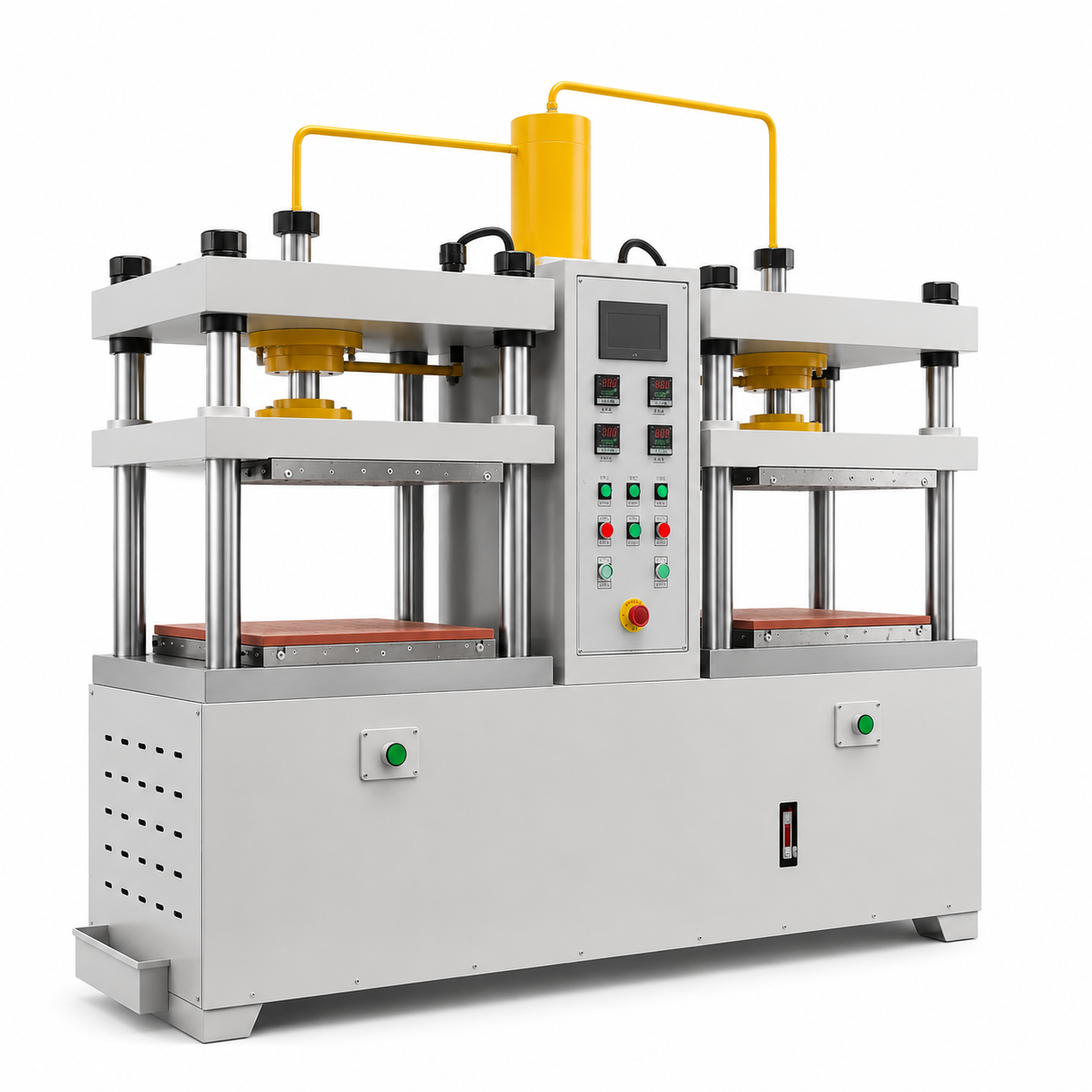

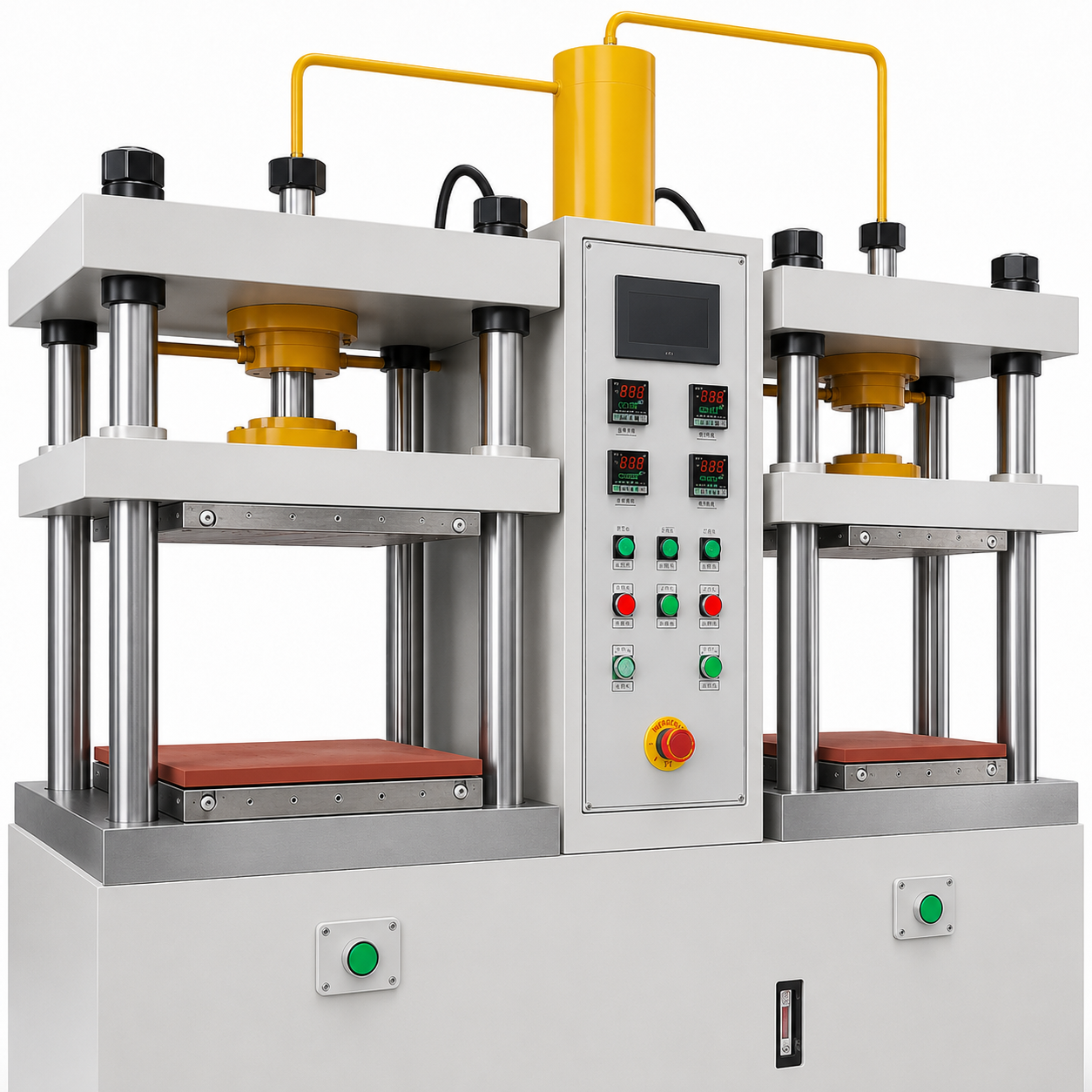

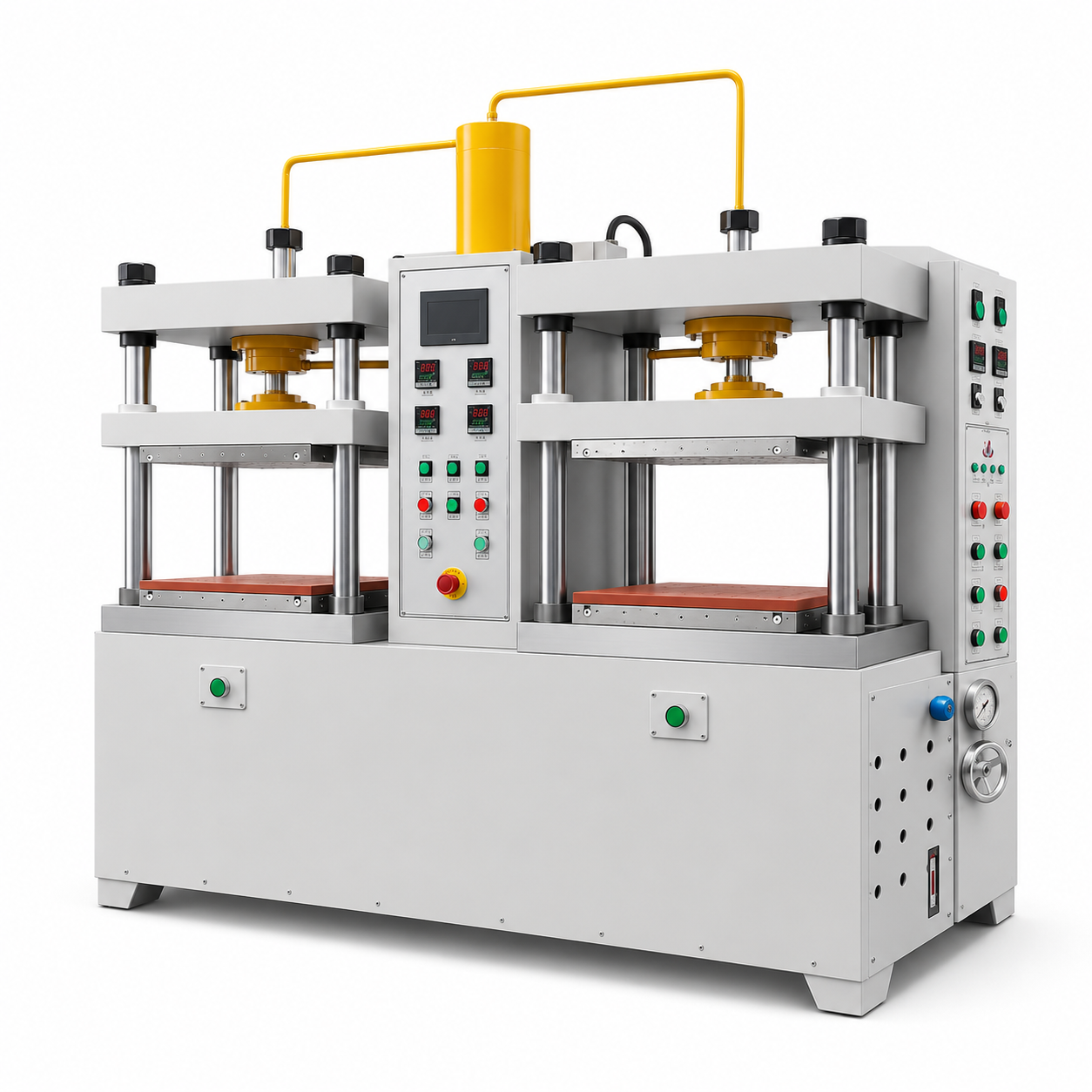

Double Station Four Column Hydraulic Hot Press Laminating Machine

Model: HP-5080 / HP-6090

Specification	HP-5080	HP-6090
Effective Hot Press Area	500×800 mm	600×900 mm
Hydraulic System	Four-column balanced hydraulic cylinder, uniform pressure output	Four-column balanced hydraulic cylinder, uniform pressure output
Heating Mode	Upper & lower mold synchronous heating, constant temperature control	Upper & lower mold synchronous heating, constant temperature control
Pressing Precision	±0.1 mm uniform lamination, no weak bonding	±0.1 mm uniform lamination, no weak bonding
Temperature Range	60–180℃ adjustable	60–180℃ adjustable
Max Pressing Stroke	150 mm adjustable	150 mm adjustable
Station Structure	Double station alternating operation	Double station alternating operation
Control System	PLC digital control + touch screen operation	PLC digital control + touch screen operation
Applicable Materials	Toe puff, heel counter, hot melt adhesive film, leather upper, mesh lining	Toe puff, heel counter, hot melt adhesive film, leather upper, mesh lining
Working Efficiency	1800–2500 pairs per 8-hour shift	2200–3000 pairs per 8-hour shift
Working Power	4.5 KW	6.0 KW
Working Voltage	AC220V 50Hz	AC220V 50Hz
Operation Screen	Touch screen	Touch screen
Machine Size (L×W×H)	1600×1000×1800mm	1800×1100×1850mm
Wooden Box Size (L×W×H)	1700×1100×1900mm	1900×1200×1950mm
Net Weight	850 KG	1050 KG
Gross Weight	980 KG	1200 KG

Double Station Four Column Hydraulic Hot Press Laminating Machine Constant Temperature Shoe Toe Heel Counter Hot Melt Bonding Machine

The 20K Pneumatic Desktop Ultrasonic Spot Welding Machine outputs stable 20KHz ultrasonic waves with auto frequency tracking, requiring no manual tuning. Featuring adjustable pneumatic pressure, it delivers solid welding without damaging materials. The digital timing system ensures consistent results in mass production. Equipped with a wear-resistant, heat-proof titanium alloy welding head, it supports flexible adjustment of welding power and duration for thin elastic tapes and thick insoles.

Its compact desktop layout fits neatly on production lines; the intuitive digital panel enables easy operation. The machine supports shoe material spot welding, edge sealing and embossing, with detachable welding head and pneumatic assemblies for convenient maintenance. Widely used in footwear workshops, shoe material plants, luggage and accessory factories, it processes elastic tapes, hook & loop fasteners, insoles and non-woven fabrics for sports shoes, casual shoes and children’s shoes. Welding seams are firm and clean without thread ends, meeting mass production requirements.

Operators should inspect power, air supply and welding heads before startup, run sample testing prior to mass production, and clean equipment after daily work. Regular daily, weekly and monthly maintenance is required. Known as the shoe material ultrasonic welder, it bonds materials instantly without glue or thread, cutting finishing workloads. Stable ultrasonic output guarantees uniform welding quality. Consumable-free processing lowers material costs, and recyclable metal components support eco-friendly circular production.

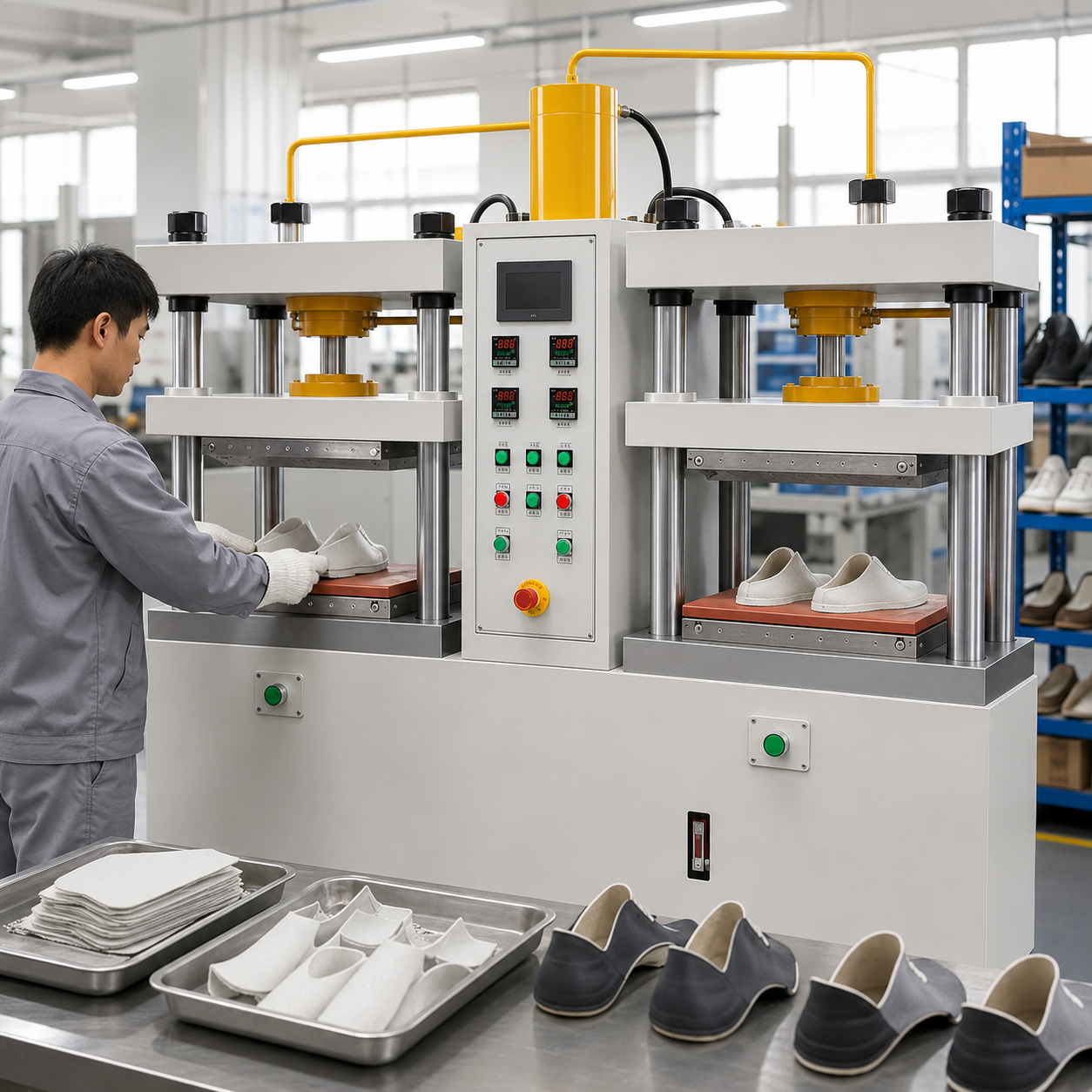

The Dual-Station Four-Column Hydraulic Constant-Temperature Hot Press Laminating Machine is dedicated to thermoforming shoe toe and heel stiffeners. Adopting a four-column balanced hydraulic structure, it provides even pressure for gap-free lamination. The alternating dual-station design boosts efficiency by allowing loading and hot pressing to proceed simultaneously. Built-in digital constant-temperature control ensures uniform melting of hot melt adhesives.

Operators can independently adjust temperature, pressure and holding time, and save parameters for repeated bulk production. The touch screen enables simple operation, while a photoelectric safety sensor triggers automatic shutdown to prevent accidents. Suitable for footwear factories and shoe shaping lines, it performs hot melt bonding of toe/heel stiffeners and hot pressing of linings and leather trims for sports shoes, leather shoes and kids’ shoes. Complete sample trial pressing before formal production, and follow standardized equipment installation and maintenance procedures.

Also called shoe toe hot melt bonding machine or heel thermoforming machine, it achieves pressing accuracy of ±0.1mm for consistent shaping effects. It allows quick mold change for different shoe styles to flexibly switch production. Replaceable wearing parts reduce maintenance expenses. Upon end-of-life, steel frames, hydraulic cylinders and motors can be recycled, helping shoe manufacturers realize energy-saving and sustainable production.
