Black White Color High Density EVA Foam Sheet, Shock Absorb Foam Board For Safety & Running Shoe Midsole, Custom Cut Self-adhesive EVA Sheet
Booth| Model Number | EVA-38 / EVA-50 |
| Brand | GISMA Guangzhou |
| Net Weight | 7.6 KG / 10.0 KG |
Black White Color High Density EVA Foam Sheet, Shock Absorb Foam Board For Safety & Running Shoe Midsole, Custom Cut Self-adhesive EVA Sheet
| Specification | EVA‑38 Standard Cushioning Grade | EVA‑50 High‑Density Support Grade |
|---|---|---|
| Material Structure | Closed‑cell high‑elasticity EVA foam | Closed‑cell high‑density EVA foam |
| Standard Sheet Size | 1000 × 2000 mm | 1000 × 2000 mm |
| Available Thickness | 3 / 5 / 10 / 15 / 20 mm | 3 / 5 / 10 / 15 / 20 mm |
| Foam Density | 38 kg/m³ | 50 kg/m³ |
| Shore Hardness | 38±3 Shore C | 52±3 Shore C |
| Compression Resilience | ≥65% | ≥60% |
| Flex Resistance | ≥800,000 cycles without collapse | ≥1,200,000 cycles without collapse |
| Self‑adhesive Option | Hot‑melt adhesive backing available | Hot‑melt adhesive backing available |
| Standard Color | Black, White (customizable) | Black, White (customizable) |
| Compatible Processes | Die‑cutting, hot‑pressing, slitting, laminating | Die‑cutting, hot‑pressing, slitting, laminating |
| Packaging | PE film wrapped + export carton | PE film wrapped + export carton |
| Qty per carton (10 mm thickness) | 10 pcs/carton | 10 pcs/carton |
| Net Weight per carton (10 mm thickness) | 7.6 kg | 10.0 kg |
| Gross Weight per carton (10 mm thickness) | 8.5 kg | 11.2 kg |
| Carton Dimension(L×W×H) | 2030×1030×110 mm | 2030×1030×110 mm |
Black White Color High Density EVA Foam Sheet
This high‑density closed‑cell EVA foam sheet is specially formulated for footwear applications. With stable and uniform closed‑cell foam structure, it delivers outstanding shock‑absorbing and impact‑dissipating performance to relieve foot pressure during walking and sports, acting as core cushioning and supporting material for running‑shoe and safety‑shoe midsoles. Dual‑density grades are available: the medium‑low‑density grade features soft texture and favorable rebound for comfortable cushioning, meeting lightweight buffering requirements of daily running shoes and casual shoes. The high‑density grade possesses solid structure, strong support and excellent compression‑bearing capacity, specially developed for load‑bearing footwear such as safety shoes and work boots. Two grades fully satisfy diverse support and comfort demands in shoemaking.

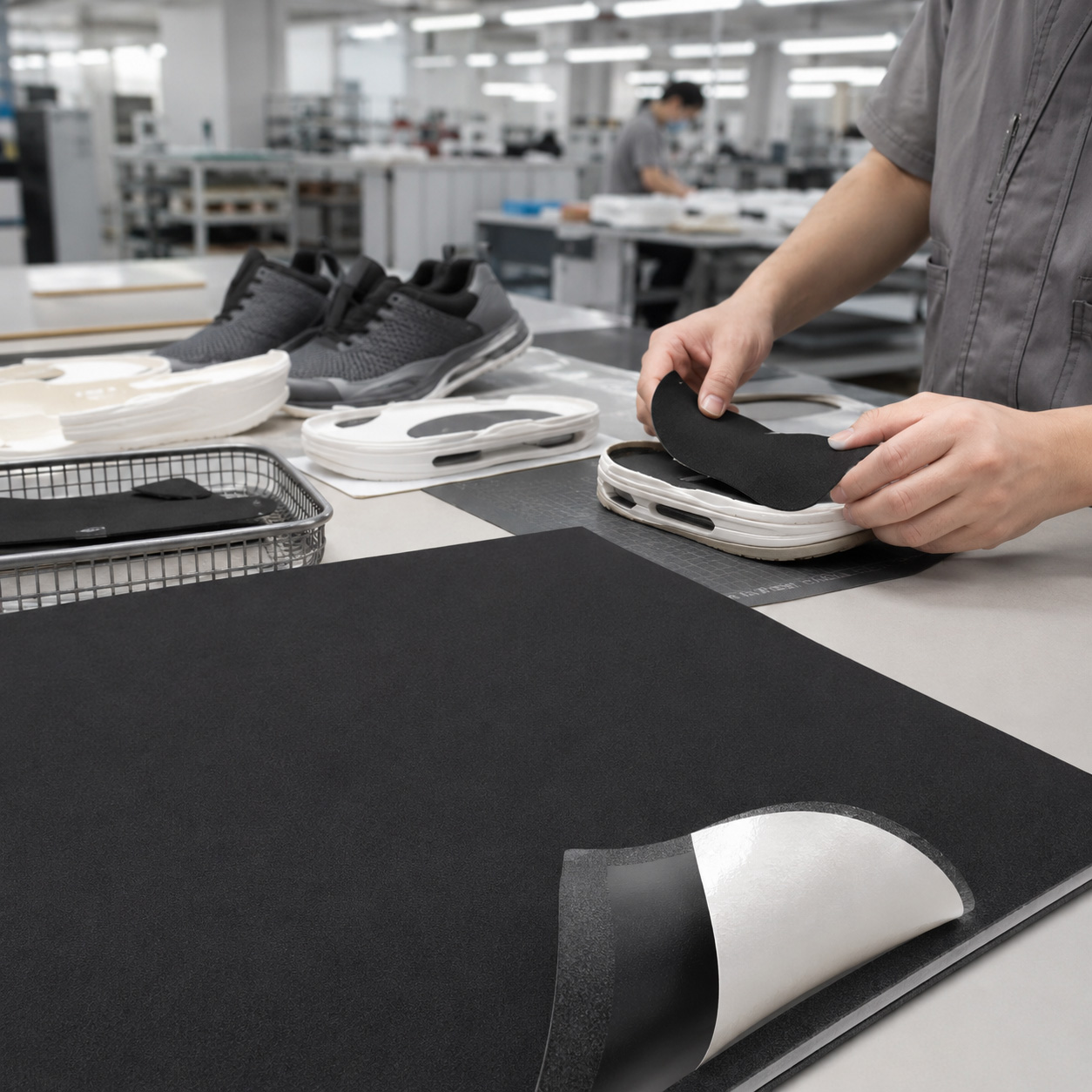

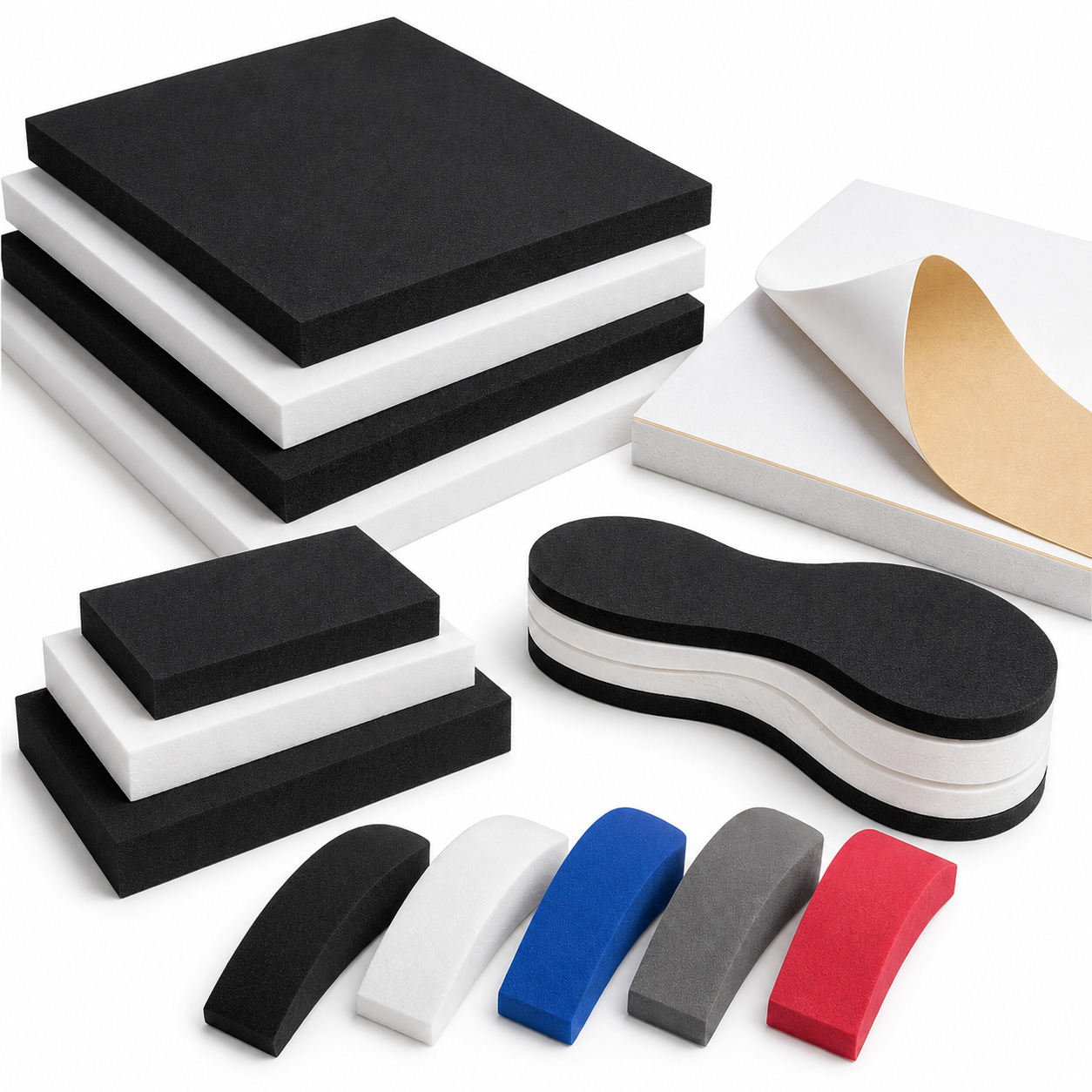

Optional hot‑melt self‑adhesive backing is available with easy‑to‑peel release liner. It simplifies laminating procedures without complicated glue application and greatly boosts assembly productivity. Standard large‑format sheets support slitting, cutting and special‑shape die‑cutting. Custom fabricated parts include midsole cushion layers, insole cores, heel support wedges, toe‑cap protective pads and ankle collar liners for diversified footwear structural designs. Excellent compression and flex resistance resists collapse, slackness and permanent deformation under long‑term service, maintaining consistent rebound cushioning and structural support.
Dense closed‑cell structure provides water‑proof and moisture‑proof performance with low sweat‑moisture absorption, effectively preventing mildew and liner hardening. Superior weather adaptability suits all‑season and humid‑environment wearing. Standard colors are black and white, with custom color‑dying available for various footwear styling. Uniform foam density, tight thickness tolerance and zero void defects guarantee superior batch‑to‑batch consistency, perfectly suitable for automatic cutting and large‑volume mass production.
High material compatibility covers full set of shoemaking processes including die‑cutting, hot‑pressing, slitting and multi‑layer laminating. Clean cutting edges are free of powder‑dropping, burrs and peeling for high finished‑product yield. Made of low‑odor eco‑friendly raw materials, it is non‑irritating and complies with general‑purpose footwear environmental standards for safe skin‑contact application. High nesting utilization rate reduces reject ratio. Clean trimming scraps and packaging materials are recyclable to cut production loss. It helps footwear manufacturers build stable, high‑efficiency, energy‑saving and eco‑friendly circular production systems. Widely used in mass production of sports shoes, safety shoes, protective gear, case & bag linings and industrial cushioning components.
