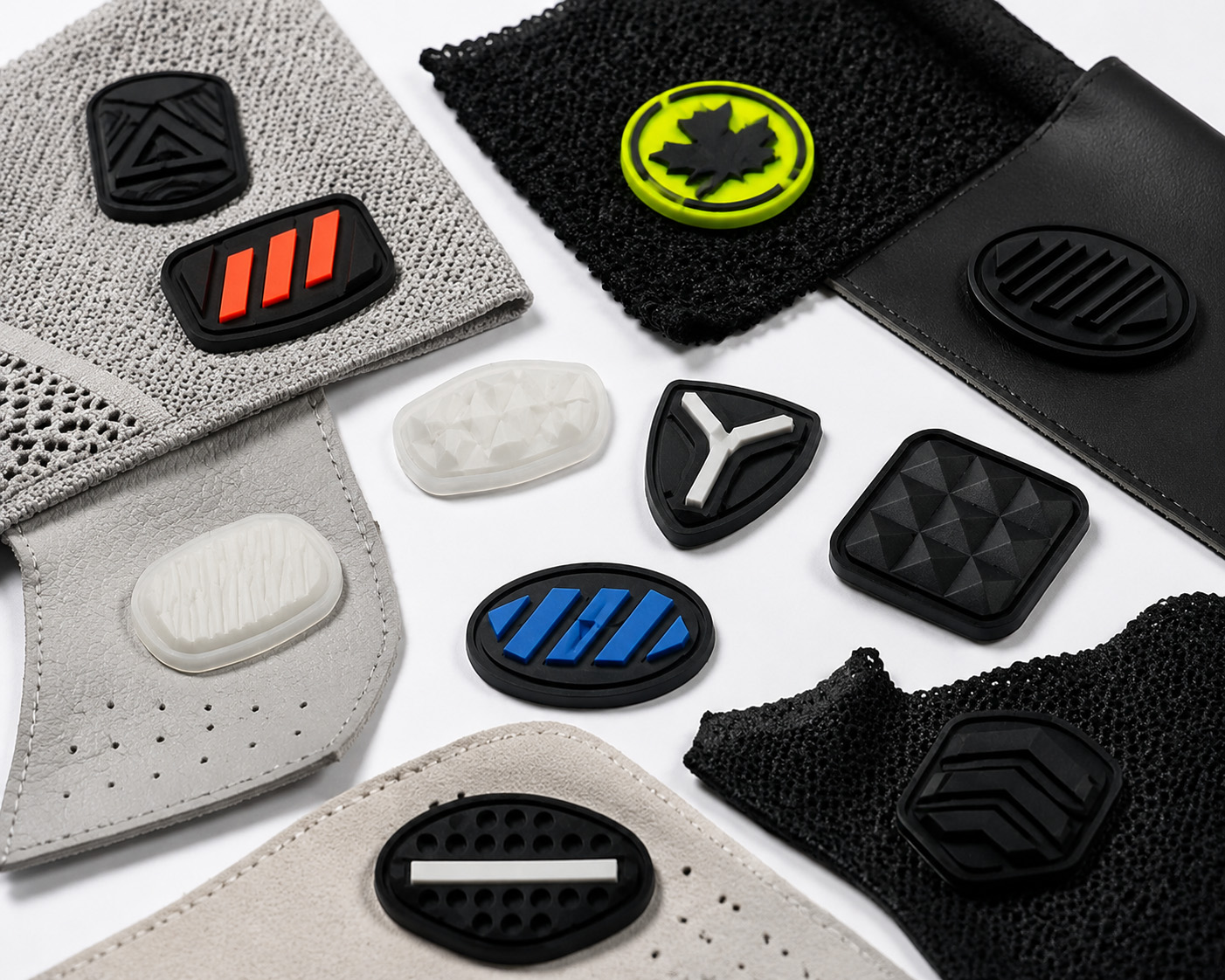

3D Silicone Heat Transfer Label For Shoe Making, Heat-Press Silicone Logo Patch For Sneaker Tongue & Heel

Booth
Model Number SIL‑HEAT‑LAB‑01
Brand GISMA Guangzhou
Net Weight 1.4 g

3D Silicone Heat Transfer Label For Shoe Making, Heat‑Press Silicone Logo Patch For Sneaker Tongue & Heel

Model: SIL‑HEAT‑LAB‑01


SpecificationParameter Details
Raw MaterialEnvironment‑friendly soft silicone
Logo Thickness0.3mm‑1.2mm 3D embossed thickness custom
SizeCustom shape & dimension according to customer artwork
ColorMulti‑color offset molding, Pantone color matching available
Heat‑Press ConditionTemperature 140‑160℃, pressure 0.3‑0.5MPa, time 8‑12s
PerformanceHigh elasticity, anti‑peeling, wash‑resistant, anti‑yellowing
Backing CarrierPET release film carrier for heat transfer
Single PackingInner PE bag packing for bulk pieces
Export Carton Pack Quantity2000 pcs per carton (based on 40×30mm standard size)
Carton Dimension(L×W×H)420×320×280 mm
Carton Net Weight2.8 KG
Carton Gross Weight3.7 KG

3D Silicone Heat Transfer Label For Shoe Making


Soft 3D‑embossed silicone delivers stereoscopic visual effect with sharp logo patterns and crisp outlines for sneaker brand marking. Equipped with integrated heat‑transfer PET carrier film, it only requires heat‑press treatment without additional adhesive, lifting workshop production efficiency. It achieves outstanding bonding strength after hot pressing and resists peeling from fly‑knit fabric, textile, PU and micro‑fiber uppers. Great elasticity and bending tolerance withstand repeated folding on shoe tongues and heel collars without logo cracking. Anti‑yellowing and wash‑resistant formulation preserves stable color and 3D profile through repeated washing and long‑term wear. Multi‑color one‑shot silicone molding, Pantone color matching, as well as custom shape, dimension and emboss depth are available based on customer design files.


3D Silicone Heat Transfer Label For Shoe Making, Heat-Press Silicone Logo Patch For Sneaker Tongue & Heel

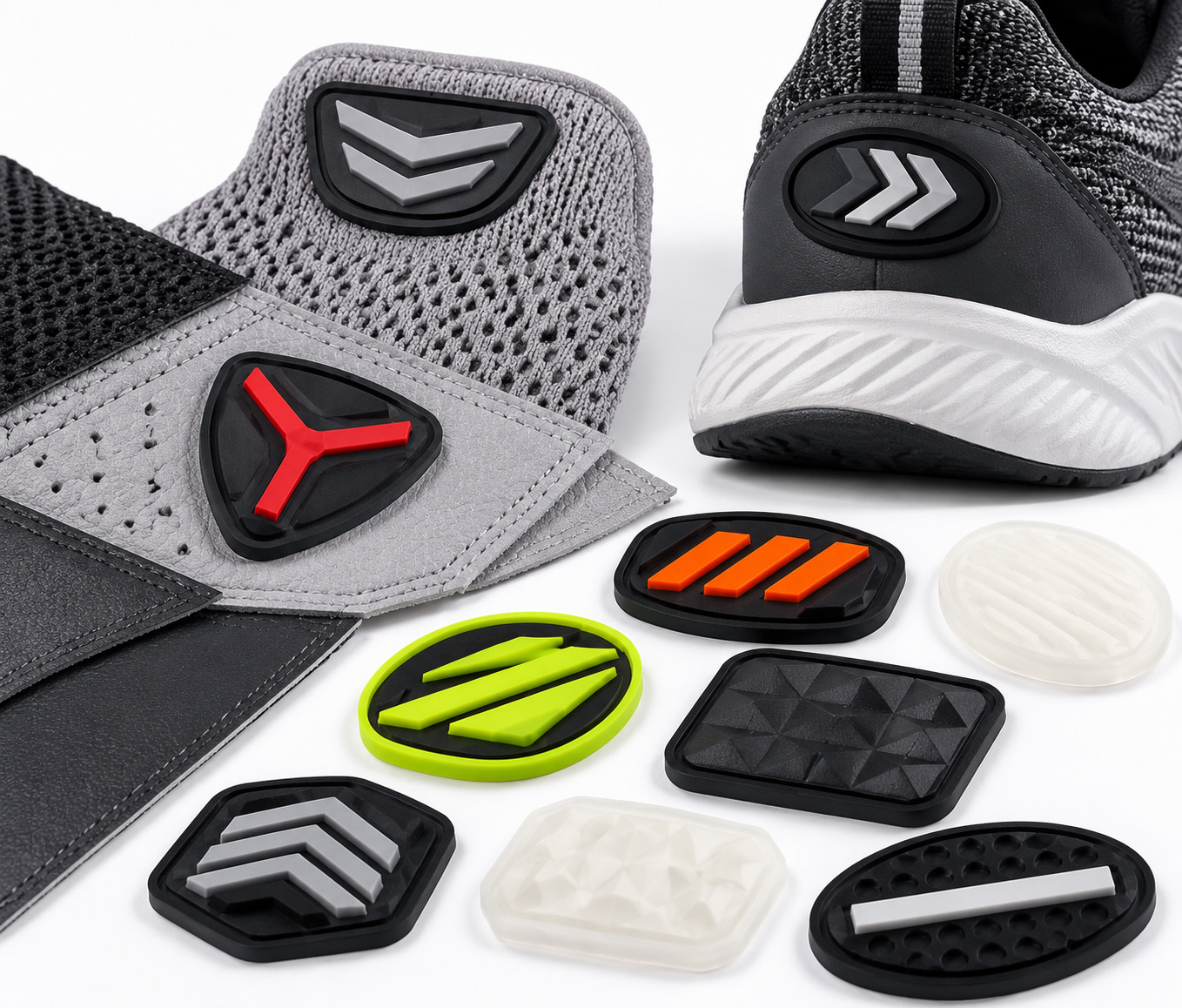

Thin and lightweight construction avoids bulges and wearing discomfort at tongue and heel areas. A wide stable hot‑press process window keeps low defect rates for mass shoe‑factory assembly‑line production. As a dedicated heat‑transfer logo accessory for shoemaking assembly workshops, it hot‑presses brand logos onto sneaker tongues, heel counters, shoe collars and straps for running shoes, casual shoes, safety shoes and fashion footwear. It also serves as heat‑transfer silicone labels for garments, bags, backpacks and protective gear, produces custom 3D silicone badges for fashion accessories, and supplies prototype brand logos for shoe‑sample R&D verification in sample‑making workshops.


Confirm artwork, size, color and emboss depth prior to mass production; vector files are preferred. Configure heat‑press machine parameters to 140‑160℃, 0.3‑0.5 MPa and pressing time 8‑12 seconds. Lay the silicone logo face‑up together with its PET carrier flat and wrinkle‑free on the shoe‑material surface. Finish hot pressing, allow slight cooling then peel off the PET release film.


Never peel the carrier under high‑temperature conditions to prevent pattern deformation. Always perform pre‑tests on actual shoe‑material samples to fine‑tune temperature, pressure and time for different fabric substrates. Low‑VOC eco‑grade silicone raw material is adopted to satisfy footwear environmental standards with no hazardous‑substance release. Export cartons use recycled corrugated cardboard printed with water‑based ink and inner PE bags are recyclable plastics.


3D Silicone Heat Transfer Label For Shoe Making, Heat-Press Silicone Logo Patch For Sneaker Tongue & Heel


Reliable hot‑melt bonding cuts logo‑peeling defect rates and raw‑material waste for shoe manufacturers. Full‑batch traceability is supported and material test reports can be furnished for overseas brand audits, meanwhile standardized operator labor protection fulfills fair‑trade social responsibilities. This label fits common shoe‑making substrates including fly‑knit, fabric, PU and micro‑fiber; recommended hot‑press settings are 140‑160℃, 0.3‑0.5 MPa for 8‑12 seconds with real‑material pre‑testing required. Custom shape, size, Pantone multi‑colors and 3D emboss depth are achievable from vector files such as AI, CDR or PDF. Proper hot‑press parameters grant anti‑peeling and wash‑resistant performance for regular service cycles, and the labels are mostly applied on sneaker tongues, heel counters, shoe collars and straps.
